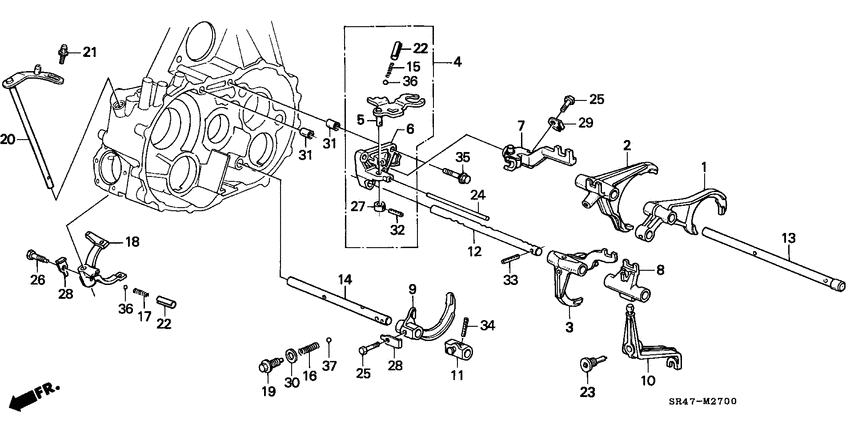

Shift fork (4WD) Diagram Honda CIVIC
- Year
- 1995
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Z
- transmission
- 5MT
- Number of doors
- 4
- grade
- RTSI
- abs
- +
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24200-PH8-000 Fork compFIFTH GEARSHIFT |
24200-PH8-000 |
US $59.78 |
||
|
2
|
2
24210-PH8-901 Fork compGEARSHIFT (3-4) |
24210-PH8-901 |
US $56.32 |
||
|
3
|
3
24220-P63-000 Fork compGEARSHIFT (1-2) |
24220-P63-000 |
US $66.56 |
||
|
4
|
4
24230-PH8-900 Holder assy.REVERSE SHIFT |
24230-PH8-900 |
US $41.47 |
||
|
5
|
5
24231-PH8-000 Fork compREVERSE SHIFT |
24231-PH8-000 |
US $19.58 |
||
|
6
|
6
24232-PH8-300 HolderREVERSE SHIFT |
24232-PH8-300 |
US $21.25 |
||
|
7
|
7
24243-PH8-900 PieceFIFTH & REVERSE SHIFT |
24243-PH8-900 |
US $23.94 |
||
|
12
|
12
24311-PH8-901
Shaft
|
24311-PH8-901 |
— | ||
|
13
|
13
24321-PH8-901
Shaft
|
24321-PH8-901 |
— | ||
|
15
|
15
24453-PH8-300
Spring set
|
24453-PH8-300 |
— | ||
|
22
|
22
24611-PH8-000 CollarSPRING (8) |
24611-PH8-000 |
US $3.64 |
||
|
24
|
24
24631-PH8-000 BarSUPER LOW SHIFT PIECE |
24631-PH8-000 |
US $7.70 |
||
|
25
|
25
90028-634-000 BoltSPECIAL, 6X21 |
90028-634-000 |
from US $1.82 |
||
|
27
|
27
90403-689-000 CollarLOCK |
90403-689-000 |
US $3.57 |
||
|
29
|
29
90439-PH8-000 WasherLOCK, 6MM |
90439-PH8-000 |
US $6.44 |
||
|
31
|
31
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
32
|
32
94305-30162 PinSPRING, 3X16 |
94305-30162 |
from US $0.74 |
||
|
33
|
33
94305-40202 PinSPRING, 4X20 |
94305-40202 |
from US $0.81 |
||
|
35
|
35
95900-060-320-8 BoltFLANGE, 6X32 |
95900-060-320-8 |
from US $0.59 |
||
| replacement | |||||
|
35
|
35
95701-060-320-8 BoltFLANGE, 6X32 |
95701-060-320-8 |
from US $0.59 |
||
|
36
|
36
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
