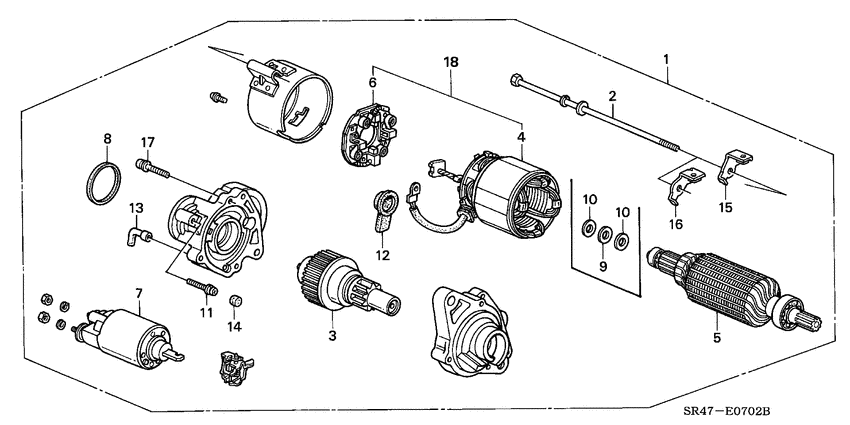

Starter motor (MITSUBA; 1) Diagram Honda CIVIC
- Year
- 1995
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- RTSI
- abs
- +
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31200-P29-903
Motor assy.
|
31200-P29-903 |
— | ||
|
2
|
2
31202-PR3-004
Bolt
|
31202-PR3-004 |
— | ||
|
3
|
3
31204-P01-305
Gear assy
|
31204-P01-305 |
— | ||
|
4
|
4
31206-PR3-004
Yoke assy.
|
31206-PR3-004 |
— | ||
|
5
|
5
31207-PR3-014
Armature assy
|
31207-PR3-014 |
— | ||
|
6
|
6
31208-PT0-005
Plate comp
|
31208-PT0-005 |
— | ||
|
7
|
7
31210-P29-902
Switch assy
|
31210-P29-902 |
— | ||
|
8
|
8
31211-PC2-006
Ring
|
31211-PC2-006 |
— | ||
|
11
|
11
31217-PC2-006 Screw-washer4X28 (MITSUBA) |
31217-PC2-006 |
from US $1.47 |
||
|
12
|
12
31235-PT0-005
Cover
|
31235-PT0-005 |
— | ||
|
13
|
13
31251-PJ7-904
Tube
|
31251-PJ7-904 |
— | ||
|
14
|
14
31252-PD2-006 RubberBUSH (MITSUBA) |
31252-PD2-006 |
from US $1.96 |
||
|
15
|
15
31291-PM1-005
Stay assy
|
31291-PM1-005 |
— | ||
|
17
|
17
93892-060-251-8 Screw-washer6X25 |
93892-060-251-8 |
US $0.59 |
