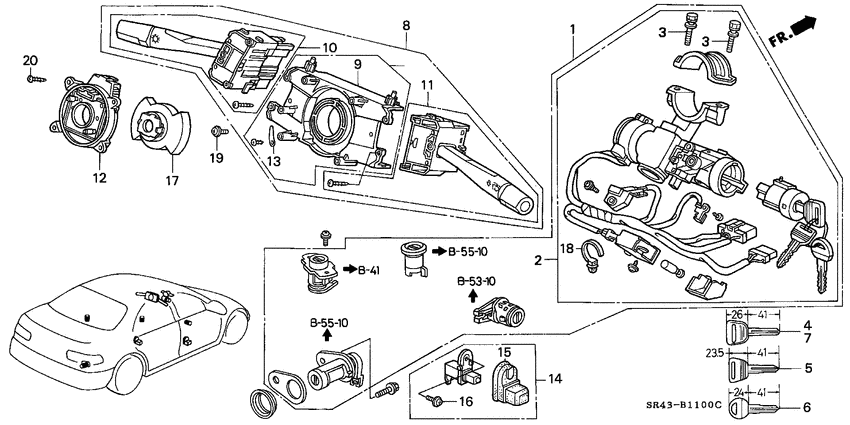

Combination switch Diagram Honda CIVIC
- Year
- 1992
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- DX
- area code
- KB
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35010-SR4-B01
Cylinder set
|
35010-SR4-B01 |
— | ||
|
2
|
2
35100-SR3-B01
Lock assy
|
35100-SR3-B01 |
— | ||
|
3
|
3
35102-SG0-003 BoltBREAK HEAD |
35102-SG0-003 |
US $2.80 |
||
|
4
|
4
35113-SH3-G02
Key
|
35113-SH3-G02 |
— | ||
|
7
|
7
35114-SH4-K01
Key
|
35114-SH4-K01 |
— | ||
|
8
|
8
35250-SR3-G21
Switch assy
|
35250-SR3-G21 |
— | ||
|
10
|
10
35255-SR3-G01
Switch assy
|
35255-SR3-G01 |
— | ||
|
11
|
11
35256-SR3-G21
Switch assy
|
35256-SR3-G21 |
— | ||
|
13
|
13
35259-SR3-A01
Shoe
|
35259-SR3-A01 |
— | ||
|
14
|
14
35400-SL4-003
Switch assy
|
35400-SL4-003 |
— | ||
|
15
|
15
35401-SL4-003 CoverDOOR SWITCH |
35401-SL4-003 |
from US $4.62 |
||
|
16
|
16
35409-692-013 ScrewFLANGE, 4X12 |
35409-692-013 |
from US $2.09 |
||
|
17
|
17
53271-SR3-000
Cam
|
53271-SR3-000 |
— | ||
|
18
|
18
91547-SF4-003 BandWIRE HARNESS (BLUE) (123.5MM) |
91547-SF4-003 |
from US $5.03 |
||
|
19
|
19
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
