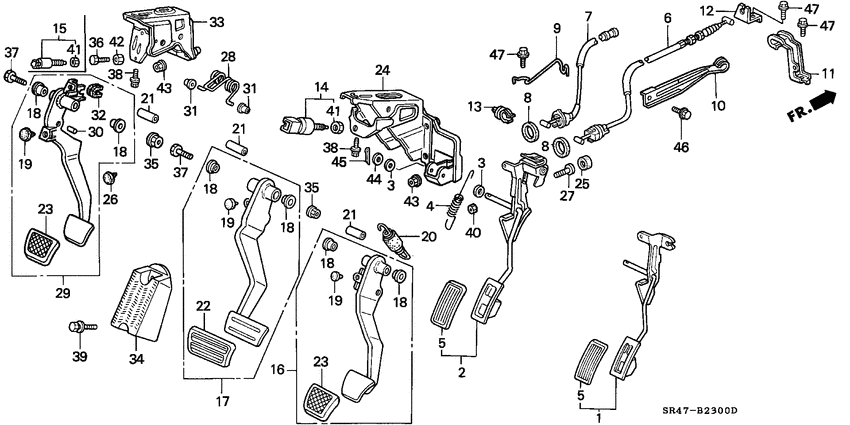

Pedal (LH) Diagram Honda CIVIC
- Year
- 1993
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- ESI
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
17800-SR3-951
Pedal comp
|
17800-SR3-951 |
— | ||
|
3
|
3
17812-SA7-010 WasherACCELERATOR PEDAL |
17812-SA7-010 |
from US $2 |
||
|
4
|
4
17814-SR3-000
Spring
|
17814-SR3-000 |
— | ||
|
5
|
5
17816-SK7-000 CoverACCELERATOR PEDAL |
17816-SK7-000 |
US $10.51 |
||
|
6
|
6
17910-SR3-A51
Wire
|
17910-SR3-A51 |
— | ||
|
8
|
8
17921-SA4-730 SealTHROTTLE CABLE |
17921-SA4-730 |
US $5.86 |
||
|
11
|
11
17931-SR3-A10
Clamp
|
17931-SR3-A10 |
— | ||
|
12
|
12
17934-SH3-000
Stay
|
17934-SH3-000 |
— | ||
|
14
|
14
35350-SE0-A03 Switch assySTOP (TEC) |
35350-SE0-A03 |
US $32.31 |
||
|
17
|
17
46500-SR3-A50
Pedal assy
|
46500-SR3-A50 |
— | ||
|
18
|
18
46504-ST5-300 BushPEDAL 0S110341 - |
46504-ST5-300 |
US $3.70 |
||
|
18
|
18
46504-679-300 BushPEDAL 00000000 - 0S110340 |
46504-679-300 |
from US $5.37 |
||
|
19
|
19
46505-SA5-000 PadPEDAL STOPPER |
46505-SA5-000 |
from US $2.38 |
||
|
20
|
20
46530-SR3-000 Spring assyPEDAL RETURN |
46530-SR3-000 |
US $4.29 |
||
|
21
|
21
46535-SM4-000 CollarPEDAL |
46535-SM4-000 |
US $5.18 |
||
|
22
|
22
46545-SA5-980 CoverBRAKE PEDAL |
46545-SA5-980 |
from US $7.99 |
||
|
24
|
24
46590-SR3-A51
Bracket
|
46590-SR3-A51 |
— | ||
|
25
|
25
46904-SM4-300 PadACCELERATOR STOPPER |
46904-SM4-300 |
US $3.08 |
||
|
27
|
27
46905-SR3-300
Bolt
|
46905-SR3-300 |
— | ||
|
34
|
34
46991-SR3-010
Bracket
|
46991-SR3-010 |
— | ||
|
35
|
35
90212-671-005 NutSELF-LOCK, 10MM |
90212-671-005 |
US $1.22 |
||
|
37
|
37
92201-10070-0J BoltHEX., 10X70 |
92201-10070-0J |
US $1.04 |
||
|
38
|
38
93404-080-160-8 Bolt-washer8X16 |
93404-080-160-8 |
from US $0.67 |
||
|
39
|
39
93405-060-200-7 Bolt-washer6X20 |
93405-060-200-7 |
from US $0.59 |
||
|
40
|
40
94001-060-700-S NutHEX., 6MM |
94001-060-700-S |
from US $0.44 |
||
|
41
|
41
94001-100-800-S NutHEX., 10MM |
94001-100-800-S |
from US $0.52 |
||
|
43
|
43
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
44
|
44
94102-10800 WasherPLAIN, 10MM |
94102-10800 |
from US $0.44 |
||
|
45
|
45
94201-25180 PinSPLIT, 2.5X18 |
94201-25180 |
from US $0.37 |
||
|
47
|
47
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
