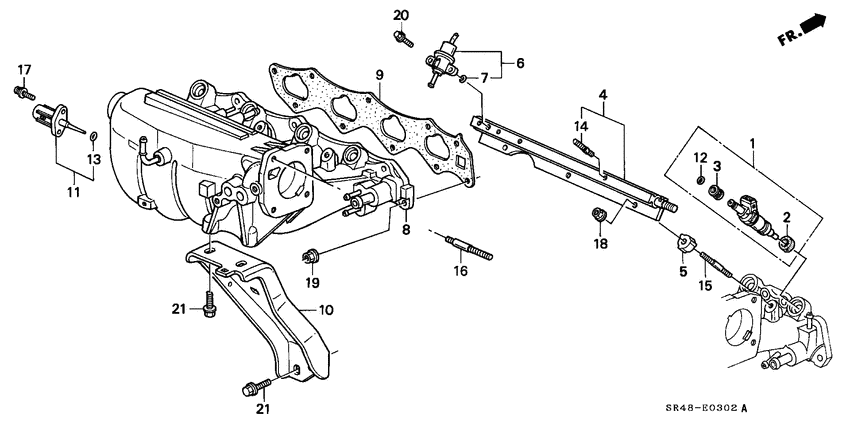

Intake manifold (PGM-FI; 1) Diagram Honda CIVIC
- Year
- 1993
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 1.6SI
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06164-P06-A02
Packing set
2100736 - |
06164-P06-A02 |
— | ||
|
1
|
1
06164-P06-A01 Packing setINJECTOR 2100171 - 2100735 |
06164-P06-A01 |
US $160 |
||
|
1
|
1
06164-P06-A00
Packing set
00000000 - 2100170 |
06164-P06-A00 |
— | ||
|
2
|
2
16472-PD6-000 Seal ringINJECTOR (OTSUKA) |
16472-PD6-000 |
US $7.33 |
||
|
3
|
3
16473-PD6-000 Cushion ringINJECTOR (OTSUKA) |
16473-PD6-000 |
from US $5.33 |
||
| replacement | |||||
|
3
|
3
16473-P10-A01 Cushion ringINJECTOR (NOK) |
16473-P10-A01 |
US $10.10 |
||
|
4
|
4
16620-P05-A00
Pipe assy.
|
16620-P05-A00 |
— | ||
|
5
|
5
16638-PH3-S00 InsulatorFUEL PIPE |
16638-PH3-S00 |
from US $2.73 |
||
|
6
|
6
16740-P05-A01
Regulator assy
|
16740-P05-A01 |
— | ||
|
7
|
7
16741-PG7-005 O-ringPRESSURE REGULATOR |
16741-PG7-005 |
from US $2.22 |
||
|
8
|
8
17100-P29-Q00
Manifold comp
|
17100-P29-Q00 |
— | ||
|
9
|
9
17105-P29-004
Gasket
|
17105-P29-004 |
— | ||
|
10
|
10
17132-P29-000
Stay
|
17132-P29-000 |
— | ||
|
11
|
11
37880-P05-A00 Sensor assyAIR TEMP |
37880-P05-A00 |
from US $27.74 |
||
|
12
|
12
91301-PM7-003 O-ring7.3X2.2 (ARAI) 2100736 - |
91301-PM7-003 |
US $4.39 |
||
| replacements | |||||
|
12
|
12
91301-P2F-A01 O-ring7.3X2.2 (NOK) 2100736 - |
91301-P2F-A01 |
US $5.39 |
||
|
12
|
12
16074-ZY3-000 O-ring2100736 - |
16074-ZY3-000 |
from US $4.14 |
||
|
12
|
12
91301-PD6-003 O-ring7.3X2.2 (ARAI) 00000000 - 2100735 |
91301-PD6-003 |
US $3.38 |
||
| replacement | |||||
|
12
|
12
91301-P2F-A01 O-ring7.3X2.2 (NOK) 00000000 - 2100735 |
91301-P2F-A01 |
US $5.39 |
||
|
13
|
13
91303-PK2-005 O-ring (7.5X1.5)7.5X1.5 |
91303-PK2-005 |
from US $1.63 |
||
|
14
|
14
92900-06018-1B BoltSTUD, 6X18 |
92900-06018-1B |
from US $0.59 |
||
|
15
|
15
92900-06028-0B BoltSTUD, 6X28 |
92900-06028-0B |
from US $0.59 |
||
|
16
|
16
92900-08035-1B BoltSTUD, 8X35 |
92900-08035-1B |
US $0.81 |
||
|
17
|
17
93893-050-160-8 Screw-washer5X16 |
93893-050-160-8 |
from US $0.55 |
||
|
18
|
18
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
19
|
19
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
20
|
20
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
21
|
21
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
