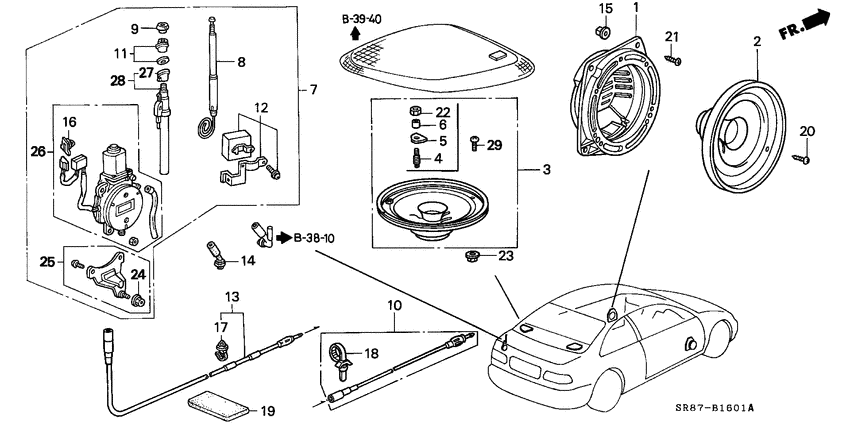

Radio antenna/speaker (RH) Diagram Honda CIVIC
- Year
- 1995
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 2
- grade
- LSI
- area code
- KE
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39112-SH3-A01 BracketFR. SPEAKER SEAL (160MM) |
39112-SH3-A01 |
US $16.61 |
||
|
2
|
2
39120-SR2-A01
Speaker assy
|
39120-SR2-A01 |
— | ||
|
3
|
3
39120-SR8-C01
Speaker assy
|
39120-SR8-C01 |
— | ||
|
4
|
4
39121-SR3-003
Bolt
00000000 - SL103665 |
39121-SR3-003 |
— | ||
|
5
|
5
39122-SR3-003
Washer
00000000 - 0L103665 |
39122-SR3-003 |
— | ||
|
6
|
6
39123-SR3-003
Spacer
00000000 - SL103665 |
39123-SR3-003 |
— | ||
|
7
|
7
39150-SR8-J01
Antenna assy
|
39150-SR8-J01 |
— | ||
|
8
|
8
39152-SL0-A01 Mast assy. |
39152-SL0-A01 |
US $56.85 |
||
|
8
|
8
39152-SR4-003 Mast assy. |
39152-SR4-003 |
US $61.44 |
||
|
9
|
9
39154-SR4-013 Nut |
39154-SR4-013 |
US $6.84 |
||
|
10
|
10
39156-SR3-C01
Sub feeder
|
39156-SR3-C01 |
— | ||
|
11
|
11
39156-SR8-003
Insulator
00000000 - 0L103665 |
39156-SR8-003 |
— | ||
|
11
|
11
39156-SR8-J01
Insulator
0L103666 - |
39156-SR8-J01 |
— | ||
|
12
|
12
39157-SM4-003
Box
|
39157-SM4-003 |
— | ||
|
13
|
13
39159-SR4-003
Sub feeder
|
39159-SR4-003 |
— | ||
|
15
|
15
90670-SG0-003 GrommetSCREW, 4MM |
90670-SG0-003 |
US $1.96 |
||
|
16
|
16
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
17
|
17
91567-SE0-003 BandWIRE HARNESS(WHITE) (93.5MM) |
91567-SE0-003 |
from US $3.08 |
||
|
18
|
18
91570-SH3-003 BandWIRE HARNESS (NATURAL) |
91570-SH3-003 |
US $3.15 |
||
|
19
|
19
91902-SB2-003 CushionWIRE HARNESS(50X100) |
91902-SB2-003 |
from US $2.96 |
||
|
20
|
20
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
21
|
21
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
||
|
22
|
22
94001-04000 NutHEX., 4MM 00000000 - 0L103665 |
94001-04000 |
from US $0.37 |
||
| replacement | |||||
|
22
|
22
94001-040-000-S NutHEX., 4MM 00000000 - 0L103665 |
94001-040-000-S |
from US $0.37 |
||
|
23
|
23
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
|
24
|
24
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
25
|
25
39151-SR8-J01
Bracket
|
39151-SR8-J01 |
— | ||
|
26
|
26
39155-SR8-J01
Motor assy.
|
39155-SR8-J01 |
— | ||
|
27
|
27
39168-SR8-J01
Cylinder
|
39168-SR8-J01 |
— | ||
|
28
|
28
39179-SR8-J01
Tube comp
|
39179-SR8-J01 |
— | ||
|
29
|
29
39123-SR4-A01
Screw
0L103666 - |
39123-SR4-A01 |
— | ||
