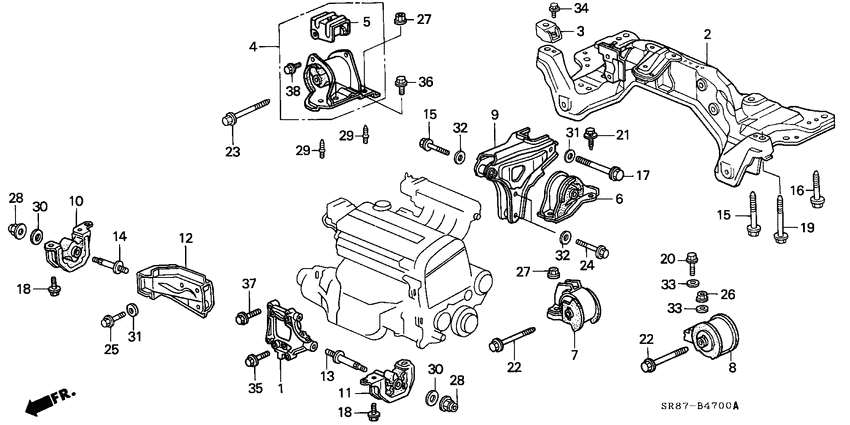

Engine mounts (MT) Diagram Honda CIVIC
- Year
- 1995
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D15B
- transmission
- 5MT
- Number of doors
- 2
- grade
- LSI
- area code
- KF
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38930-P06-A00
Bracket
|
38930-P06-A00 |
— | ||
|
2
|
2
50200-SR3-L51
Beam
|
50200-SR3-L51 |
— | ||
|
3
|
3
50203-SR3-010
Collar
|
50203-SR3-010 |
— | ||
|
4
|
4
50803-SR3-A01
Rubber
|
50803-SR3-A01 |
— | ||
|
5
|
5
50807-SR3-A01
Damper
|
50807-SR3-A01 |
— | ||
|
6
|
6
50810-SR3-030
Rubber
|
50810-SR3-030 |
— | ||
|
7
|
7
50820-SR3-J11 RUBBER ASSY., ENGINE SIDE MOUNTING (HYDRO) |
50820-SR3-J11 |
US $143.58 |
||
|
9
|
9
50827-SR3-010
BRACKET , ENGINE REAR MOUNTING
|
50827-SR3-010 |
— | ||
|
10
|
10
50841-SR0-003 RubberR. FR. STOPPER INSULATOR (MT) |
50841-SR0-003 |
US $40.19 |
||
|
11
|
11
50842-SR0-003 RubberL. FR. STOPPER INSULATOR (MT) |
50842-SR0-003 |
US $40.19 |
||
|
12
|
12
50843-SR3-010 BracketR. FR. STOPPER (MT) |
50843-SR3-010 |
US $55.42 |
||
|
13
|
13
90131-ST7-000 BoltL. FR. STOPPER |
90131-ST7-000 |
US $19 |
||
|
14
|
14
90133-SR3-010
Bolt
|
90133-SR3-010 |
— | ||
|
15
|
15
90161-SR3-000 BoltFLANGE, 14X107 |
90161-SR3-000 |
US $7.10 |
||
|
16
|
16
90162-SR3-000 BoltFLANGE, 14X60 |
90162-SR3-000 |
US $5.77 |
||
|
17
|
17
90165-SM4-020 BoltFLANGE, 12X101 |
90165-SM4-020 |
US $8.14 |
||
|
18
|
18
90166-SR3-000 BoltFLANGE, 10X30 |
90166-SR3-000 |
US $1.95 |
||
|
19
|
19
90167-SR3-000 BoltFLANGE, 14X120 |
90167-SR3-000 |
US $11.84 |
||
|
21
|
21
90176-SK7-013 BoltFLANGE, 10X31 |
90176-SK7-013 |
US $3.99 |
||
|
22
|
22
90182-SR3-000
Bolt
|
90182-SR3-000 |
— | ||
|
23
|
23
90183-SR3-000
Bolt
|
90183-SR3-000 |
— | ||
|
24
|
24
90188-SR3-010 BoltFLANGE, 14X67 |
90188-SR3-010 |
US $6.51 |
||
|
25
|
25
90190-SR3-000 BoltFLANGE, 12X64 |
90190-SR3-000 |
US $4.28 |
||
|
27
|
27
90371-SR3-000 NutFLANGE, 12MM |
90371-SR3-000 |
US $4.07 |
||
|
28
|
28
90372-SR3-003 NutFLANGE, 12MM |
90372-SR3-003 |
from US $2.18 |
||
|
29
|
29
90380-SR3-000 BoltSTUD, 12X57.6 |
90380-SR3-000 |
US $5.45 |
||
|
30
|
30
90504-SR3-010 WasherFR. STOPPER |
90504-SR3-010 |
US $4.03 |
||
|
31
|
31
90505-SB2-000
Washer
|
90505-SB2-000 |
— | ||
|
32
|
32
90505-SR3-000
Washer
|
90505-SR3-000 |
— | ||
|
34
|
34
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
35
|
35
95701-100-350-8 BoltFLANGE, 10X35 |
95701-100-350-8 |
from US $0.81 |
||
|
36
|
36
95701-120-200-8 BoltFLANGE, 12X20 |
95701-120-200-8 |
from US $0.89 |
||
|
37
|
37
95801-100-500-8 BoltFLANGE, 10X50 |
95801-100-500-8 |
from US $0.98 |
||
|
38
|
38
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
