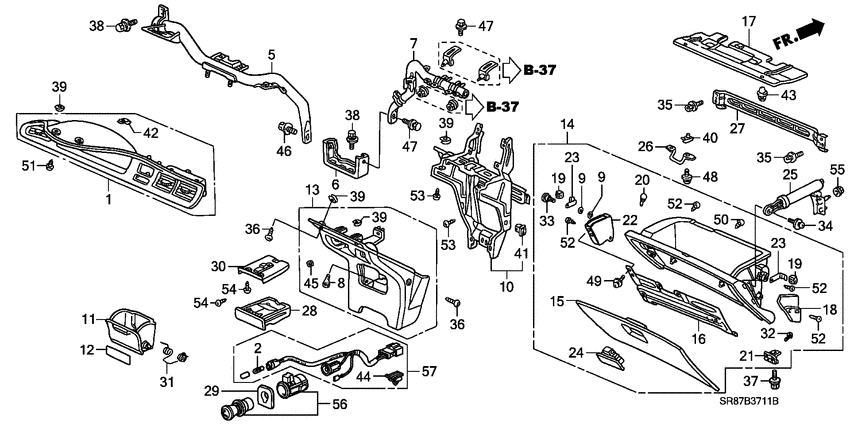

Instrument panel garnish (SRS; LH) Diagram Honda CIVIC
- Year
- 1995
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 2
- grade
- LSI
- area code
- KP
- left-hand drive
- +
- sunroof
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04772-SR3-C00ZF
Panel assy.
|
04772-SR3-C00ZF |
— | ||
|
2
|
2
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
5
|
5
61170-SR3-A00ZZ
Beam comp
|
61170-SR3-A00ZZ |
— | ||
|
6
|
6
61174-SR8-A00ZZ
Bracket
|
61174-SR8-A00ZZ |
— | ||
|
7
|
7
61180-SR8-A01ZZ
Beam comp
|
61180-SR8-A01ZZ |
— | ||
|
8
|
8
66418-579-000 StopperGLOVE BOX LID |
66418-579-000 |
US $8.40 |
||
|
9
|
9
75353-671-000 LockSCREW |
75353-671-000 |
US $1.94 |
||
|
10
|
10
77160-SR3-C02
Frame comp
|
77160-SR3-C02 |
— | ||
|
11
|
11
77295-SR3-G01ZA
Pocket
|
77295-SR3-G01ZA |
— | ||
|
13
|
13
77299-SR3-C01ZA
Cover
|
77299-SR3-C01ZA |
— | ||
|
14
|
14
77500-SR8-A95ZA
Box assy
SL104266 - |
77500-SR8-A95ZA |
— | ||
|
14
|
14
77500-SR8-A94ZA Box assyGLOVE *NH167L* 00000000 - SL104265 |
77500-SR8-A94ZA |
US $184.32 |
||
|
15
|
15
77501-SR8-A90ZA
Lid
|
77501-SR8-A90ZA |
— | ||
|
16
|
16
77503-SR8-A90ZZ
Bolster
|
77503-SR8-A90ZZ |
— | ||
|
18
|
18
77505-SR8-A90
Plate
|
77505-SR8-A90 |
— | ||
|
19
|
19
77508-SP0-000
Rubber
|
77508-SP0-000 |
— | ||
|
20
|
20
77509-SR3-000
Stopper
|
77509-SR3-000 |
— | ||
|
21
|
21
77512-SR8-A90
Hinge comp
|
77512-SR8-A90 |
— | ||
|
22
|
22
77515-SR8-A91
Plate
|
77515-SR8-A91 |
— | ||
|
23
|
23
77518-SR8-A90
Stopper
|
77518-SR8-A90 |
— | ||
|
24
|
24
77520-SR2-003ZA Lock assyGLOVE BOX *NH167L* |
77520-SR2-003ZA |
US $12.14 |
||
|
25
|
25
77530-SR8-A00
Damper assy.
|
77530-SR8-A00 |
— | ||
|
26
|
26
77542-SR3-000
Striker
|
77542-SR3-000 |
— | ||
|
27
|
27
77551-SR8-A90
Frame
00000000 - 0L104265 |
77551-SR8-A90 |
— | ||
|
27
|
27
77551-SR8-A91
Frame
0L104266 - |
77551-SR8-A91 |
— | ||
|
28
|
28
77710-SR3-003ZA
Ashtray comp.
|
77710-SR3-003ZA |
— | ||
|
29
|
29
77721-SR3-000ZB ProtectorCIGARETTE LIGHTER *NH167L* |
77721-SR3-000ZB |
US $5.32 |
||
|
30
|
30
77730-SR3-003
Holder comp
|
77730-SR3-003 |
— | ||
|
31
|
31
77755-SH3-010
Spring
|
77755-SH3-010 |
— | ||
|
32
|
32
90101-692-000 ScrewGLOVE BOX |
90101-692-000 |
from US $0.37 |
||
|
33
|
33
90104-MR4-900
Screw
|
90104-MR4-900 |
— | ||
|
34
|
34
90105-SA7-000 Screw-washer4X16 |
90105-SA7-000 |
from US $0.28 |
||
|
35
|
35
90133-SH3-000 Bolt-washer5X16 |
90133-SH3-000 |
US $2.03 |
||
|
36
|
36
90137-SH3-000 ScrewTAPPING, 4X16 |
90137-SH3-000 |
from US $1.70 |
||
|
37
|
37
90140-SH3-003 Bolt-washer5X18 |
90140-SH3-003 |
US $2.44 |
||
|
38
|
38
90157-SA0-000 Bolt-washer8X25 |
90157-SA0-000 |
US $2.37 |
||
|
39
|
39
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
40
|
40
90305-SA0-000 NutFLOATING, 4MM |
90305-SA0-000 |
from US $3.56 |
||
|
41
|
41
90665-SM4-003 GrommetSCREW, 4MM (YELLOW) |
90665-SM4-003 |
US $1.40 |
||
|
42
|
42
90666-SD4-003 ClipFITTING |
90666-SD4-003 |
from US $1.92 |
||
|
44
|
44
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
45
|
45
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
46
|
46
93404-080-160-8 Bolt-washer8X16 |
93404-080-160-8 |
from US $0.67 |
||
|
47
|
47
93405-060-160-0 Bolt-washer6X16 |
93405-060-160-0 |
from US $0.59 |
||
|
48
|
48
93893-040-160-7 Screw-washer4X16 |
93893-040-160-7 |
from US $0.52 |
||
|
49
|
49
93893-050-160-7 Screw-washer5X16 |
93893-050-160-7 |
from US $0.52 |
||
|
50
|
50
93903-34380 ScrewTAPPING, 4X12 |
93903-34380 |
from US $0.41 |
||
|
51
|
51
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
||
|
52
|
52
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
53
|
53
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
|
54
|
54
93913-24480 ScrewTAPPING, 4X16 (PO) |
93913-24480 |
from US $0.37 |
||
|
55
|
55
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
|
56
|
56
39600-SW3-305
Lighter unit
|
39600-SW3-305 |
— | ||
| replacement | |||||
|
56
|
56
39600-SW3-505 LIGHTER ASSYCIGA |
39600-SW3-505 |
US $21.62 |
||
|
57
|
57
39628-S04-305
Cord assy
|
39628-S04-305 |
— | ||
