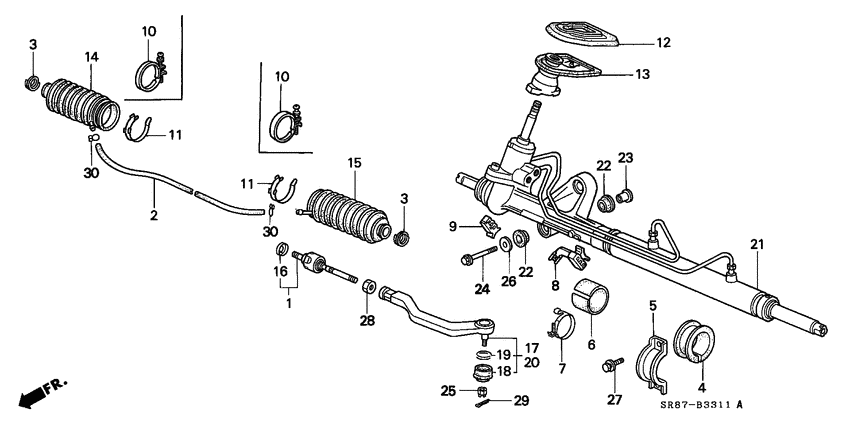

P.s. gear box (RH) Diagram Honda CIVIC
- Year
- 1994
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D15B
- transmission
- 4AT
- Number of doors
- 2
- grade
- BASIC
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53010-SR3-010 End setRACK |
53010-SR3-010 |
US $76.84 |
||
|
2
|
2
53411-SR3-950
Tube
|
53411-SR3-950 |
— | ||
|
3
|
3
53434-SD9-000 ClipTIE ROD |
53434-SD9-000 |
from US $2.38 |
||
| replacement | |||||
|
3
|
3
53434-S04-J51 CLIP, TIE ROD |
53434-S04-J51 |
from US $3.60 |
||
|
4
|
4
53436-SH3-950
Cushion b
|
53436-SH3-950 |
— | ||
|
5
|
5
53438-SR3-J51
Bracket
|
53438-SR3-J51 |
— | ||
|
6
|
6
53446-SR3-950
Rubber t
|
53446-SR3-950 |
— | ||
|
7
|
7
53447-SH3-950
Band
|
53447-SH3-950 |
— | ||
|
9
|
9
53447-ST0-003
Clip
|
53447-ST0-003 |
— | ||
|
10
|
10
53449-SH3-000 BandBELLOWS |
53449-SH3-000 |
US $4.34 |
||
|
12
|
12
53501-SR3-000 Grommet aSTEERING |
53501-SR3-000 |
US $7.40 |
||
|
13
|
13
53502-SR3-950
Grommet b
|
53502-SR3-950 |
— | ||
|
14
|
14
53534-SR3-N52 Dust seal comp.TIE ROD |
53534-SR3-N52 |
from US $22.28 |
||
|
15
|
15
53534-SR3-N62 Dust seal comp.TIE ROD |
53534-SR3-N62 |
US $17.54 |
||
|
16
|
16
53536-SR3-000 WasherTIE ROD LOCK |
53536-SR3-000 |
from US $2.59 |
||
|
17
|
17
53540-SR0-A01 End compR. TIE ROD |
53540-SR0-A01 |
US $76.16 |
||
|
18
|
18
53546-SH0-A01 BootTIE ROD END (TECHNICAL AUTO PARTS) |
53546-SH0-A01 |
US $12.18 |
||
|
19
|
19
53548-SL0-A01 CirclipTIE ROD |
53548-SL0-A01 |
US $3.99 |
||
|
20
|
20
53560-SR0-A01 End compL. TIE ROD |
53560-SR0-A01 |
US $76.16 |
||
|
21
|
21
53601-SR3-J74 Box assyPOWER STEERING GEAR |
53601-SR3-J74 |
US $1,043.20 |
||
|
22
|
22
53685-SH3-000 BushSTEERING GEAR BOX MOUNTING |
53685-SH3-000 |
from US $3.40 |
||
|
23
|
23
53686-SH3-010 CollarSTEERING GEAR BOX MOUNTING |
53686-SH3-010 |
US $5.92 |
||
|
24
|
24
90108-SR3-951 BoltGEAR BOX MOUNTING (10X65) |
90108-SR3-951 |
US $4.62 |
||
|
25
|
25
90320-SF4-000 NutCASTLE, 10MM |
90320-SF4-000 |
US $4.44 |
||
|
26
|
26
90325-SM4-J00
Washer
|
90325-SM4-J00 |
— | ||
|
27
|
27
93402-100-200-8 Bolt-washer10X20 |
93402-100-200-8 |
from US $0.74 |
||
|
28
|
28
94002-142-800-S NUT, HEX., 14MM |
94002-142-800-S |
US $0.74 |
||
|
29
|
29
94201-20180 PinSPLIT, 2.0X18 |
94201-20180 |
from US $0.37 |
||
| replacements | |||||
|
29
|
29
94201-29220
Pin
|
94201-29220 |
— | ||
|
29
|
29
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
29
|
29
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
from US $0.49 |
||
|
30
|
30
95002-02074 ClipTUBE (B7) |
95002-02074 |
US $0.44 |
||
