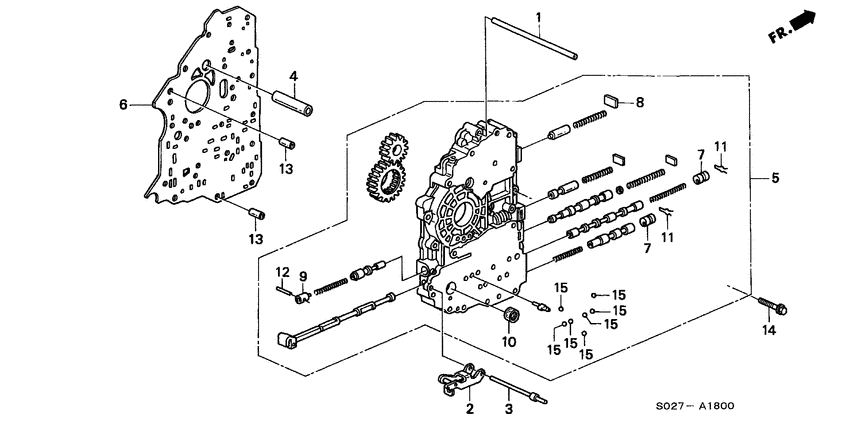

Main valve body (2) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D16Y
- transmission
- 4AT
- Number of doors
- 2
- grade
- 1.6ILS
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- power window
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22741-PN1-000 PipeLOW CLUTCH |
22741-PN1-000 |
US $5.88 |
||
|
2
|
2
24630-P24-J00 Arm compCHANGE DETENT |
24630-P24-J00 |
US $24.06 |
||
|
3
|
3
24635-P24-J00
Shaft
|
24635-P24-J00 |
— | ||
|
4
|
4
25145-PA9-010 ShaftOIL PUMP GEAR |
25145-PA9-010 |
US $10.17 |
||
|
5
|
5
27000-P4R-010 Body assyMAIN VALVE |
27000-P4R-010 |
US $518.40 |
||
|
6
|
6
27112-PDM-010
Plate
00000000 - 5036017 |
27112-PDM-010 |
— | ||
|
6
|
6
27112-PDM-020 PlateMAIN SEPARATING 5036018 - |
27112-PDM-020 |
US $27.26 |
||
|
7
|
7
27122-P4R-000 Cap12MM |
27122-P4R-000 |
US $4.34 |
||
|
8
|
8
27263-PA9-000 Seat Valve Sping 1.0mmVALVE SPRING, 1.0MM |
27263-PA9-000 |
US $2.66 |
||
|
9
|
9
27628-PK4-000 CapLOCK UP TIMING |
27628-PK4-000 |
US $3.08 |
||
|
10
|
10
27750-PL5-J01 FilterSECONDARY BODY |
27750-PL5-J01 |
US $5.91 |
||
|
11
|
11
90638-P56-000 ClipVALVE CAP |
90638-P56-000 |
US $1.68 |
||
|
12
|
12
91101-PF4-003 Roller3.5X21.8 |
91101-PF4-003 |
from US $1.19 |
||
|
13
|
13
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
14
|
14
95701-060-280-8 BoltFLANGE, 6X28 |
95701-060-280-8 |
from US $0.74 |
||
|
15
|
15
96211-07000 BallSTEEL, #7 (7/32) |
96211-07000 |
from US $0.15 |
