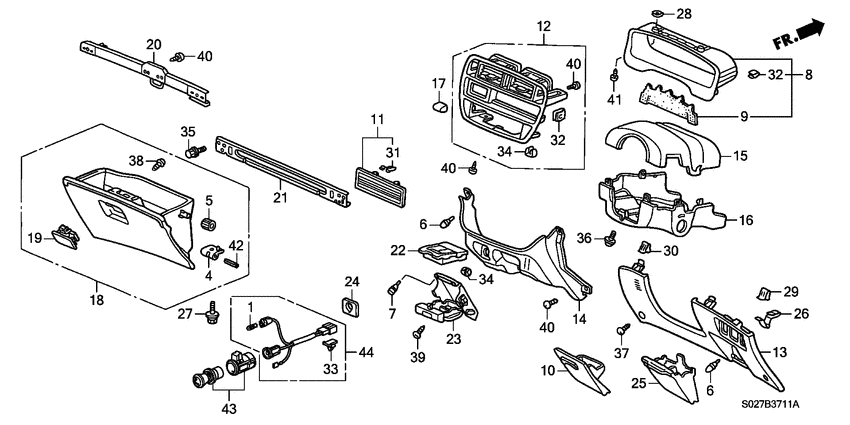

Instrument panel garnish (RH) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D16Y
- transmission
- 4AT
- Number of doors
- 2
- grade
- 1.6ILS
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- air conditioner (dealer set)
- +
- srs driver & passenger
- +
- auto radio tuner
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
4
|
4
66405-S04-010
Stay
|
66405-S04-010 |
— | ||
|
5
|
5
66417-SB3-670 RubberGLOVE BOX STOPPER |
66417-SB3-670 |
US $2.66 |
||
|
6
|
6
66418-SB2-000
Stopper
|
66418-SB2-000 |
— | ||
|
7
|
7
66418-S04-000
Stopper
|
66418-S04-000 |
— | ||
|
8
|
8
77200-S04-000ZA
Visor assy
|
77200-S04-000ZA |
— | ||
|
9
|
9
77202-S04-G00
Blind
|
77202-S04-G00 |
— | ||
|
12
|
12
77255-S04-E11ZA
Panel assy.
|
77255-S04-E11ZA |
— | ||
|
13
|
13
77301-S04-000ZB
Cover, INSTRUMENT DRIVER LOWER *NH264L*
|
77301-S04-000ZB |
— | ||
|
14
|
14
77311-S04-000ZB CoverINSTRUMENT CENTER LOWER *NH264L* |
77311-S04-000ZB |
US $76.80 |
||
|
15
|
15
77350-S04-G00ZC Cover assy.COLUMN UPPER *NH264L* |
77350-S04-G00ZC |
US $19.15 |
||
|
16
|
16
77360-S02-G80ZA
Cover assy.
|
77360-S02-G80ZA |
— | ||
|
17
|
17
77429-S04-G00 KnobUPPER VENT |
77429-S04-G00 |
US $3.51 |
||
|
18
|
18
77500-S04-013ZB Box assyGLOVE *NH264L* |
77500-S04-013ZB |
US $112.20 |
||
|
19
|
19
77540-S04-003ZB Lock assyGLOVE BOX *NH264L* |
77540-S04-003ZB |
US $23.99 |
||
|
20
|
20
77541-S04-E00
Striker assy
|
77541-S04-E00 |
— | ||
|
21
|
21
77551-S04-010 FrameGLOVE BOX |
77551-S04-010 |
US $13.58 |
||
|
22
|
22
77710-S04-003
Case comp.
|
77710-S04-003 |
— | ||
|
23
|
23
77715-S04-003ZA Case comp.OUTER *NH264L* |
77715-S04-003ZA |
US $45.82 |
||
|
24
|
24
77721-S04-000ZB ProtectorCIGARETTE LIGHTER *NH264L* |
77721-S04-000ZB |
US $4.76 |
||
|
25
|
25
77750-S04-000ZB PocketDRIVER *NH264L* |
77750-S04-000ZB |
US $24.19 |
||
|
26
|
26
77752-SF4-000
Spring
|
77752-SF4-000 |
— | ||
|
27
|
27
90140-SH3-003 Bolt-washer5X18 |
90140-SH3-003 |
US $2.44 |
||
|
28
|
28
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
29
|
29
90609-SG0-003 ClipPILLAR GARNISH |
90609-SG0-003 |
US $4.40 |
||
|
30
|
30
90609-SL9-900 ClipINSTRUMENT LOWER |
90609-SL9-900 |
US $2.25 |
||
|
32
|
32
90666-SD4-003 ClipFITTING |
90666-SD4-003 |
from US $1.92 |
||
|
33
|
33
91555-SM4-003 ClipCOUPLER (RED) |
91555-SM4-003 |
from US $2.15 |
||
|
34
|
34
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
35
|
35
93401-050-160-8 Bolt-washer5X16 |
93401-050-160-8 |
from US $0.52 |
||
|
36
|
36
93891-050-100-7 Screw-washer5X10 |
93891-050-100-7 |
from US $0.44 |
||
|
37
|
37
93903-24480 ScrewTAPPING, 4X16 |
93903-24480 |
from US $0.37 |
||
|
38
|
38
93903-34480 ScrewTAPPING, 4X16 |
93903-34480 |
from US $0.37 |
||
|
39
|
39
93913-24480 ScrewTAPPING, 4X16 (PO) |
93913-24480 |
from US $0.37 |
||
|
40
|
40
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
|
41
|
41
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
42
|
42
94305-40222 PinSPRING, 4X22 |
94305-40222 |
from US $0.89 |
||
|
43
|
43
39600-SW3-305
Lighter unit
|
39600-SW3-305 |
— | ||
| replacement | |||||
|
43
|
43
39600-SW3-505 LIGHTER ASSYCIGA |
39600-SW3-505 |
US $21.62 |
||
|
44
|
44
39628-S04-305
Cord assy
|
39628-S04-305 |
— | ||
