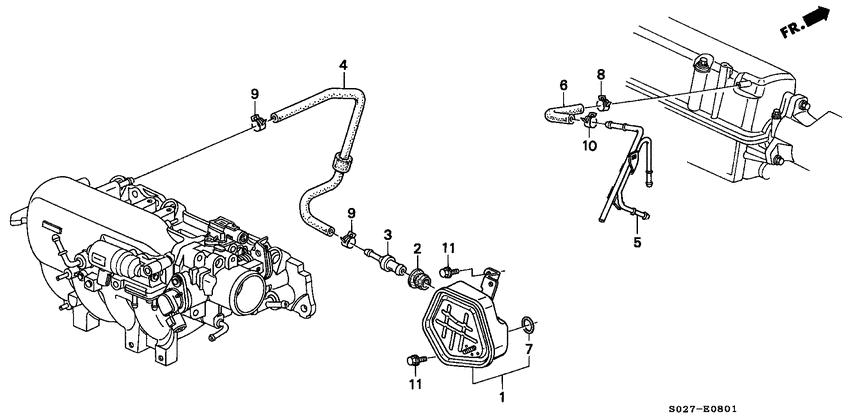

Breather chamber (SOHC VTEC) Diagram Honda CIVIC
- Year
- 1996
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D16Y
- transmission
- 4AT
- Number of doors
- 2
- grade
- EX
- area code
- KY
- left-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11851-P2A-000
Chamber set
|
11851-P2A-000 |
— | ||
|
2
|
2
11855-P72-000 Grommet, PCV Valve |
11855-P72-000 |
US $2.89 |
||
|
3
|
3
17130-PH1-003 Valve assy.PCV |
17130-PH1-003 |
from US $30.55 |
||
|
4
|
4
17131-P2J-000 Tube compPCV |
17131-P2J-000 |
US $19.86 |
||
|
5
|
5
17135-P2J-000 Pipe compBREATHER |
17135-P2J-000 |
US $23.55 |
||
|
6
|
6
17153-P05-A00
Tube
|
17153-P05-A00 |
— | ||
|
7
|
7
91324-PC6-000 O-ring20.6X2.6 |
91324-PC6-000 |
from US $1.78 |
||
|
8
|
8
91405-P05-A01 ClampTUBE (D13.8) |
91405-P05-A01 |
US $2.94 |
||
|
9
|
9
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
||
|
10
|
10
95002-413-000-4 ClampTUBE(D13) |
95002-413-000-4 |
from US $1.04 |
||
|
11
|
11
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
