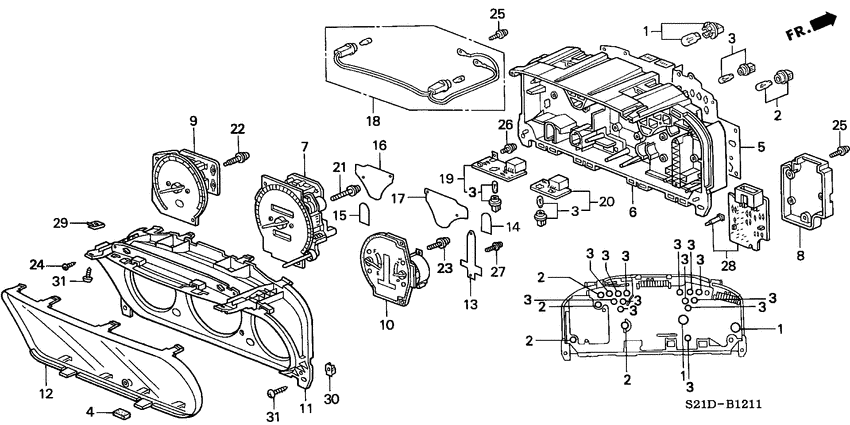

Combination meter components (YAZAKI) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Y
- transmission
- 5MT
- Number of doors
- 4
- grade
- VTI LEV
- power steering
- +
- area code
- NZ
- right-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35505-S04-901
Socket assy
|
35505-S04-901 |
— | ||
|
2
|
2
35505-S04-911
Socket assy
|
35505-S04-911 |
— | ||
|
3
|
3
35505-S04-931
Socket assy
|
35505-S04-931 |
— | ||
|
4
|
4
37115-S04-901 Rubber |
37115-S04-901 |
US $1.61 |
||
|
5
|
5
78108-S21-E01
Panel
|
78108-S21-E01 |
— | ||
|
6
|
6
78110-S21-D12
Case assy.
|
78110-S21-D12 |
— | ||
|
7
|
7
78115-S21-D12
Speedometer assy
|
78115-S21-D12 |
— | ||
|
9
|
9
78125-S21-T61
Tachometer assy.
|
78125-S21-T61 |
— | ||
|
10
|
10
78130-S21-D12
Meter assy
|
78130-S21-D12 |
— | ||
|
11
|
11
78155-S21-D12
Visor assy
|
78155-S21-D12 |
— | ||
|
12
|
12
78156-S21-D12
Lens
|
78156-S21-D12 |
— | ||
|
15
|
15
78157-S04-941
Lens
|
78157-S04-941 |
— | ||
|
16
|
16
78158-S21-D12
Lens
|
78158-S21-D12 |
— | ||
|
17
|
17
78159-S21-E01
Lens
|
78159-S21-E01 |
— | ||
|
18
|
18
78166-S04-901
Illumination assy.
|
78166-S04-901 |
— | ||
|
20
|
20
78190-S21-T61
Circuit assy.
|
78190-S21-T61 |
— | ||
|
21
|
21
78193-S04-901
Screw
|
78193-S04-901 |
— | ||
|
22
|
22
78193-S04-911
Screw-washer
|
78193-S04-911 |
— | ||
|
23
|
23
78193-S04-921
Screw
|
78193-S04-921 |
— | ||
|
24
|
24
78193-S04-931
Screw
|
78193-S04-931 |
— | ||
|
25
|
25
78193-S04-941 ScrewTAPPING WASHER, 3X12 |
78193-S04-941 |
US $1.19 |
||
|
26
|
26
78193-S04-951
Screw-washer
|
78193-S04-951 |
— | ||
|
29
|
29
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
30
|
30
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
31
|
31
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
