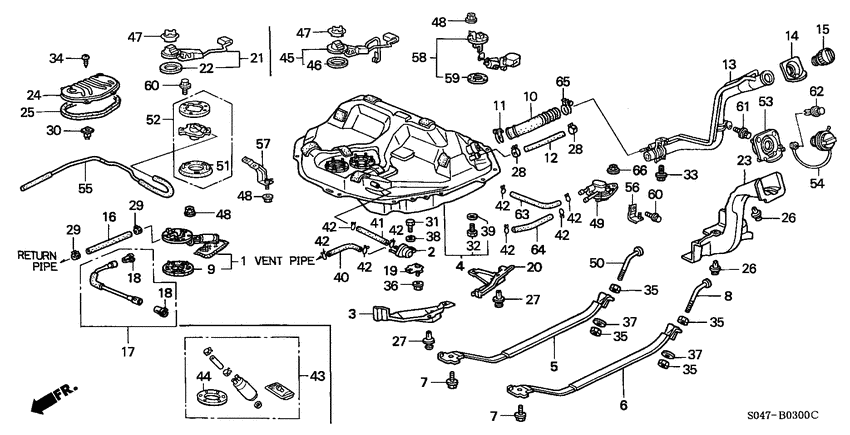

Fuel tank Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- D14Z
- transmission
- 5MT
- Number of doors
- 4
- grade
- 1.4IS
- area code
- KS
- left-hand drive
- +
- headlight washer
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17040-S04-G31 Pump setFUEL |
17040-S04-G31 |
US $536.32 |
||
|
3
|
3
17372-SR3-010
Cover
|
17372-SR3-010 |
— | ||
|
4
|
4
17500-S01-G00
Tank comp.
|
17500-S01-G00 |
— | ||
|
5
|
5
17521-S01-000
Band assy.
|
17521-S01-000 |
— | ||
|
6
|
6
17522-SR3-000 Band assy.L. FUEL TANK MOUNTING |
17522-SR3-000 |
US $20.79 |
||
|
7
|
7
17525-SM4-000 Bolt-washer10X35 |
17525-SM4-000 |
from US $1.78 |
||
|
8
|
8
17526-S04-A00 BoltL. FUEL TANK MOUNTING |
17526-S04-A00 |
US $3.71 |
||
|
8
|
8
17525-SR3-000
Bolt
|
17525-SR3-000 |
— | ||
| replacement | |||||
|
8
|
8
17525-SR3-305 Bolt |
17525-SR3-305 |
US $4.59 |
||
|
9
|
9
17574-SE0-000 PackingBASE |
17574-SE0-000 |
from US $7.51 |
||
|
10
|
10
17651-S04-A00
Tube
|
17651-S04-A00 |
— | ||
|
11
|
11
17652-SA5-000 ClipFILLER TUBE |
17652-SA5-000 |
US $5.48 |
||
|
12
|
12
17653-S04-G00
Tube
|
17653-S04-G00 |
— | ||
|
13
|
13
17660-S04-G01
Pipe comp
XS228161 - |
17660-S04-G01 |
— | ||
|
13
|
13
17660-S04-G00
Pipe comp
00000000 - XS228160 |
17660-S04-G00 |
— | ||
|
16
|
16
17704-SR3-930 HoseFUEL PIPE RETURN |
17704-SR3-930 |
US $16.38 |
||
|
17
|
17
17710-SR3-A31
Tube comp
|
17710-SR3-A31 |
— | ||
|
18
|
18
17711-ST0-003 RetainerYELLOW) (TOKAI |
17711-ST0-003 |
US $6.19 |
||
|
20
|
20
17733-SR3-020
Protector
|
17733-SR3-020 |
— | ||
|
23
|
23
74559-SR3-010
Cover
|
74559-SR3-010 |
— | ||
|
24
|
24
74661-SR3-000
Cap
|
74661-SR3-000 |
— | ||
|
25
|
25
74662-SR3-000
Rubber
|
74662-SR3-000 |
— | ||
|
26
|
26
90657-SA5-003 ClipSIDE APRON MOLDING |
90657-SA5-003 |
from US $1.84 |
||
|
27
|
27
90657-SH3-013 ClipTWO WAY VALVE COVER |
90657-SH3-013 |
US $4.74 |
||
|
28
|
28
90700-SB0-003 ClipAIR BLEED TUBE |
90700-SB0-003 |
US $3.18 |
||
|
29
|
29
91406-SL4-931 ClampFUEL HOSE (D10.5) |
91406-SL4-931 |
from US $1.86 |
||
|
30
|
30
91601-SH3-013 GrommetSCREW, 5MM (BLACK) |
91601-SH3-013 |
from US $1.55 |
||
|
32
|
32
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
33
|
33
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
34
|
34
93901-25220 ScrewTAPPING, 5X12 |
93901-25220 |
from US $0.38 |
||
|
35
|
35
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
35
|
35
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
37
|
37
94101-08800 WasherPLAIN, 8MM |
94101-08800 |
from US $0.37 |
||
|
39
|
39
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
42
|
42
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
48
|
48
90301-SE0-J00 NutFLANGE, 6MM |
90301-SE0-J00 |
US $4.23 |
||
|
49
|
49
17371-SR3-A01
Valve
|
17371-SR3-A01 |
— | ||
|
50
|
50
17525-S04-A00
Bolt
|
17525-S04-A00 |
— | ||
|
51
|
51
17551-S84-A01 Packing |
17551-S84-A01 |
US $6.16 |
||
|
52
|
52
17570-S04-G01
Valve
|
17570-S04-G01 |
— | ||
|
53
|
53
17662-S1A-E01 PackingFUEL FILLER |
17662-S1A-E01 |
US $10.92 |
||
|
54
|
54
17670-S1A-E02
Cap comp.
|
17670-S1A-E02 |
— | ||
|
55
|
55
17710-S04-G01
Tube comp
00000000 - XS211396 |
17710-S04-G01 |
— | ||
|
55
|
55
17710-S04-G02
Tube comp
XS211397 - |
17710-S04-G02 |
— | ||
|
56
|
56
17726-S04-G01
Bracket
|
17726-S04-G01 |
— | ||
|
57
|
57
17729-S01-A00
Bracket
|
17729-S01-A00 |
— | ||
|
58
|
58
37800-S02-J12
Meter unit
|
37800-S02-J12 |
— | ||
| replacement | |||||
|
58
|
58
37800-S02-C12
(meter)unit assy
|
37800-S02-C12 |
— | ||
|
59
|
59
37801-SV4-L01 PackingBASE |
37801-SV4-L01 |
US $24.09 |
||
|
60
|
60
90101-S84-000 Bolt-washer5X10 |
90101-S84-000 |
US $1.47 |
||
|
61
|
61
90150-S04-003 BoltEARTH, 6X16 |
90150-S04-003 |
US $1.88 |
||
|
62
|
62
91594-S1A-E01 ClipFUEL FILLER CAP |
91594-S1A-E01 |
US $3.11 |
||
|
63
|
63
95001-551-056-0 TubeFUEL, 5.5X105 (95001-55001-60M) |
95001-551-056-0 |
US $1.63 |
||
|
64
|
64
95001-551-306-0 TubeFUEL, 5.5X130 (95001-55001-60M) |
95001-551-306-0 |
US $1.55 |
||
|
65
|
65
17652-SA5-000 ClipFILLER TUBE 00000000 - XS208687 |
17652-SA5-000 |
US $5.48 |
||
|
65
|
65
17652-SL0-003
Clip
XS208688 - |
17652-SL0-003 |
— | ||
| replacement | |||||
|
65
|
65
17652-T0A-003 CLIP, FILLER TUBEXS208688 - |
17652-T0A-003 |
US $4.40 |
||
|
66
|
66
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
