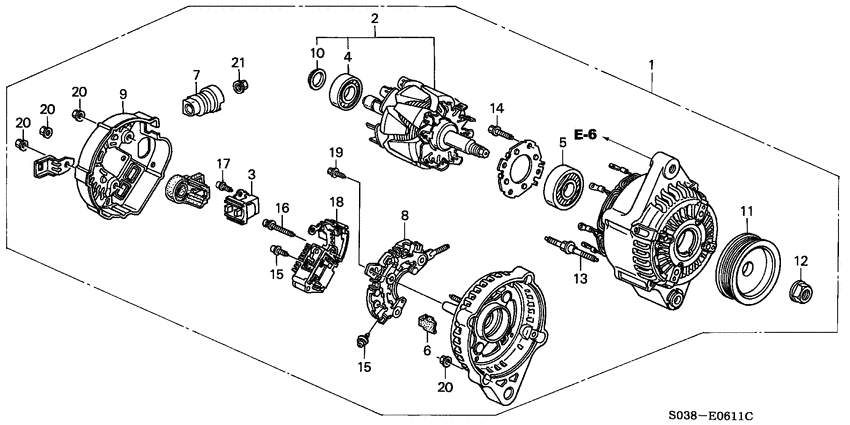

Alternator (DENSO; SOHC) Diagram Honda CIVIC
- Year
- 1996
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Y
- transmission
- 4AT
- Number of doors
- 3
- grade
- GLI
- abs
- +
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-P2C-Q01 Alternator assyCJT26) (DENSO 00000000 - 1002377 |
31100-P2C-Q01 |
US $1,013.76 |
||
|
1
|
1
31100-P2C-Q02
Alternator assy
1002378 - |
31100-P2C-Q02 |
— | ||
|
2
|
2
31101-P2A-003
Rotor assy.
|
31101-P2A-003 |
— | ||
|
3
|
3
31105-P01-003 Holder assy.BRUSH |
31105-P01-003 |
US $14.72 |
||
|
4
|
4
31111-PD1-014 BearingRR. GENERATOR |
31111-PD1-014 |
US $16.26 |
||
|
5
|
5
31114-PD1-044 BearingFR. GENERATOR |
31114-PD1-044 |
US $17.28 |
||
|
6
|
6
31118-PD1-004
Bush
|
31118-PD1-004 |
— | ||
|
7
|
7
31119-PH1-004
Bush
|
31119-PH1-004 |
— | ||
|
8
|
8
31127-P2C-Q01
Rectifier assy.
1002378 - |
31127-P2C-Q01 |
— | ||
|
8
|
8
31127-PD2-014
Rectifier assy.
00000000 - 1002377 |
31127-PD2-014 |
— | ||
|
9
|
9
31135-P2C-Q02
Cover
1002378 - |
31135-P2C-Q02 |
— | ||
|
9
|
9
31135-P2C-Q01 CoverRR. END 00000000 - 1002377 |
31135-P2C-Q01 |
US $12.74 |
||
|
10
|
10
31138-PD1-004 CoverBEARING |
31138-PD1-004 |
from US $3.18 |
||
|
11
|
11
31141-P2C-Q01
Pulley
|
31141-P2C-Q01 |
— | ||
|
12
|
12
31142-PD1-004 NutPULLEY LOCK |
31142-PD1-004 |
from US $3.03 |
||
|
13
|
13
31145-PD1-004 BoltSTUD, 6X68 |
31145-PD1-004 |
from US $3.18 |
||
|
14
|
14
31146-P3R-T01 Screw-washer1002378 - |
31146-P3R-T01 |
US $1.68 |
||
|
14
|
14
31146-PD1-004 Screw-washer4X19 00000000 - 1002377 |
31146-PD1-004 |
US $2.24 |
||
|
15
|
15
31147-PT0-003 Screw-washer1002378 - |
31147-PT0-003 |
from US $1.41 |
||
|
15
|
15
31147-PD1-004
Screw-washer
00000000 - 1002377 |
31147-PD1-004 |
— | ||
|
16
|
16
31147-PD1-004
Screw-washer
00000000 - 1002377 |
31147-PD1-004 |
— | ||
|
16
|
16
31149-P3R-T01
Screw-washer
1002378 - |
31149-P3R-T01 |
— | ||
|
17
|
17
31148-PD1-004 Screw-washer4X25 |
31148-PD1-004 |
from US $1.48 |
||
|
18
|
18
31150-P2C-Q01
Regulator assy
|
31150-P2C-Q01 |
— | ||
|
19
|
19
31153-P3R-T01
Bolt-washer
1002378 - |
31153-P3R-T01 |
— | ||
|
20
|
20
90231-PD1-014 Nut-washer5MM |
90231-PD1-014 |
from US $1.85 |
||
|
21
|
21
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
