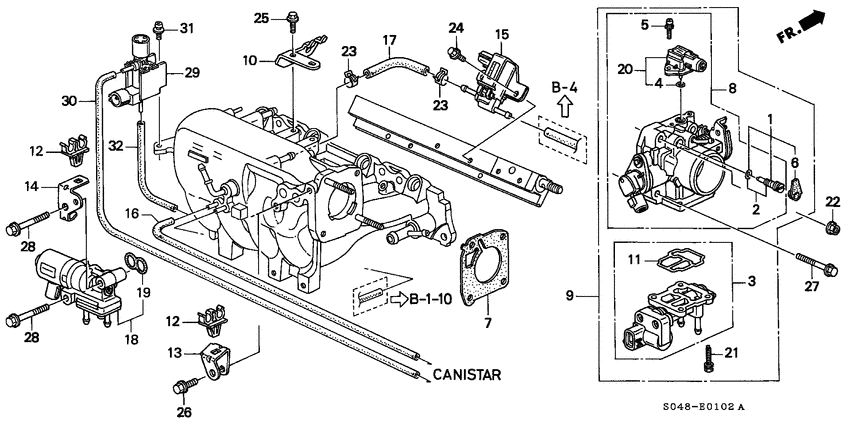

Throttle body (EXI-1.6L/VTI-1.6L) Diagram Honda CIVIC
- Year
- 1996
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Y
- transmission
- 4AT
- Number of doors
- 4
- grade
- VTI
- power steering
- +
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16016-P2A-003 Screw set |
16016-P2A-003 |
US $9.92 |
||
|
3
|
3
16022-P2E-A51 Valve setROTARY AIR CONTROL |
16022-P2E-A51 |
US $397.94 |
||
|
4
|
4
16075-P07-000 O-ring |
16075-P07-000 |
from US $2.23 |
||
|
5
|
5
16080-P07-000 Screw-washer4X16 |
16080-P07-000 |
from US $2.37 |
||
|
6
|
6
16097-P2A-003 CapSEALING |
16097-P2A-003 |
US $1.26 |
||
|
7
|
7
16176-P2A-004 Gasket |
16176-P2A-004 |
from US $5.31 |
||
|
9
|
9
16400-P2M-T51
Throttle Body Assy
|
16400-P2M-T51 |
— | ||
|
10
|
10
16411-P2J-000
Stay
|
16411-P2J-000 |
— | ||
|
11
|
11
16456-P2A-003 Seal |
16456-P2A-003 |
from US $3.42 |
||
|
12
|
12
17363-PE2-013
Clamp
|
17363-PE2-013 |
— | ||
|
13
|
13
36152-P2J-J60
Stay
|
36152-P2J-J60 |
— | ||
|
16
|
16
36165-P2J-J00
Tube a
|
36165-P2J-J00 |
— | ||
|
20
|
20
37830-P0G-S00
Sensor set
|
37830-P0G-S00 |
— | ||
| replacement | |||||
|
20
|
20
37830-PAA-S00 Sensor setMAP |
37830-PAA-S00 |
US $376.72 |
||
|
21
|
21
93402-050-161-8 Bolt-washer5X16 |
93402-050-161-8 |
US $0.52 |
||
|
22
|
22
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
25
|
25
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
26
|
26
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
27
|
27
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
