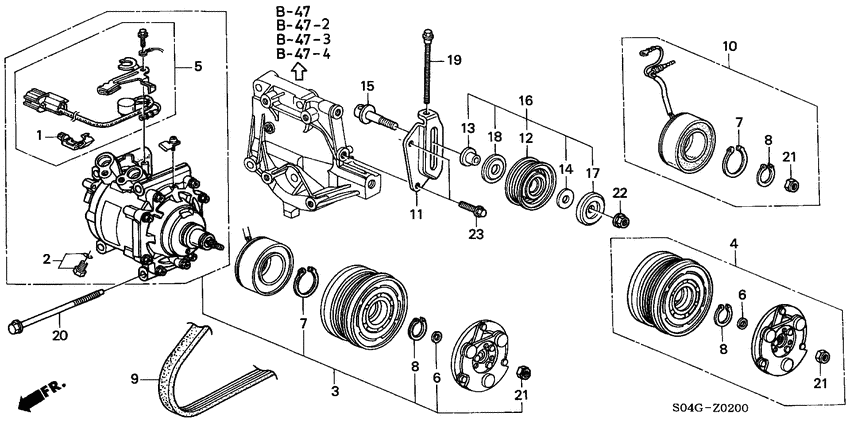

Air conditioner (COMPRESSOR; HADSYS) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Y
- transmission
- 4AT
- Number of doors
- 4
- grade
- GLI
- abs
- +
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38773-PR3-003 ClipWIRE HARNESS |
38773-PR3-003 |
US $2.03 |
||
|
2
|
2
38801-PCA-006
Valve sub assy.
|
38801-PCA-006 |
— | ||
|
3
|
3
38810-P2A-016 Compressor comp.KEIHIN |
38810-P2A-016 |
US $811.52 |
||
|
4
|
4
38900-P2A-006
Clutch set
|
38900-P2A-006 |
— | ||
|
5
|
5
38908-P2A-016 Protector setTHERMAL |
38908-P2A-016 |
US $46.08 |
||
|
6
|
6
38912-P06-006
Shim set
|
38912-P06-006 |
— | ||
|
7
|
7
38913-P06-006 CirclipEXTERNAL, 45MM |
38913-P06-006 |
US $5.74 |
||
|
8
|
8
38914-P06-006
Circlip
|
38914-P06-006 |
— | ||
|
9
|
9
38920-P2A-003 BeltCOMPRESSOR (BANDO) |
38920-P2A-003 |
US $31.42 |
||
| replacement | |||||
|
9
|
9
38920-P2A-013 BELTCOMPRESSOR |
38920-P2A-013 |
US $31.42 |
||
|
10
|
10
38924-P2A-006 Coil setSOLENOID |
38924-P2A-006 |
US $146.61 |
||
|
11
|
11
38926-P2A-000
Stay
|
38926-P2A-000 |
— | ||
|
12
|
12
38942-P2K-T01 Pulley compIDLE |
38942-P2K-T01 |
US $36.10 |
||
|
13
|
13
38944-P3R-T00 CollarIDLE PULLEY |
38944-P3R-T00 |
US $3.92 |
||
|
14
|
14
38945-P3R-T01
Washer
|
38945-P3R-T01 |
— | ||
|
15
|
15
38946-P01-000 BoltIDLE PULLEY |
38946-P01-000 |
US $4.80 |
||
|
16
|
16
38950-P2K-305 Pulley assy |
38950-P2K-305 |
from US $43.90 |
||
|
17
|
17
38951-P3R-T00 CoverBEARING OUTER |
38951-P3R-T00 |
US $2.80 |
||
|
18
|
18
38952-P3R-T00 CoverBEARING INNER |
38952-P3R-T00 |
US $1.96 |
||
|
19
|
19
90021-P01-000 BoltFLANGE, 8X85 |
90021-P01-000 |
US $4.65 |
||
|
20
|
20
90023-P2A-000 BoltFLANGE, 8X100 |
90023-P2A-000 |
US $5.70 |
||
|
21
|
21
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
22
|
22
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
23
|
23
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
