Combination switch (RH) Diagram Honda CIVIC

Year
2000
Model code
CIVIC
Sales region
General
Engine
D16Y
transmission
4AT
Number of doors
4
grade
GLI
abs
+
power steering
+
area code
KQ
right-hand drive
+
srs driver & passenger
+

Difficulties in parts search?

Parts list

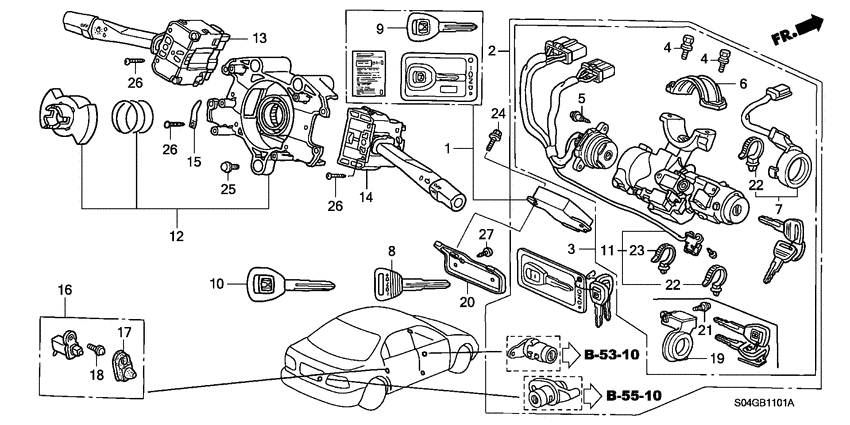

Combination switch

Difficulties in parts search?

Combination switch
Description OEM Part # Price
1
1
04809-S04-G04
Key & unit assy.

04809-S04-G04

2
2
06350-S04-Q14
Cylinder set

06350-S04-Q14

3
3
35100-S04-Q13
Lock assy

00000000 - YS201469

35100-S04-Q13

3
3
35100-S04-Q14
Lock assy

YS201470 -

35100-S04-Q14

4
4

35102-SV4-003

Bolt

BREAK HEAD

35102-SV4-003

from US $2

5
5

35103-S04-003

Screw

RECESSED

35103-S04-003

US $1.61

6
6

35108-S04-003

Holder

COLUMN

35108-S04-003

US $2.10

7
7
35109-S04-E01
Antenna comp.

35109-S04-E01

9
9

35113-S04-G03

Key

BLANK (MAIN) (BLACK) (IMMOBILIZER)

35113-S04-G03

US $56.70

11
11
35130-S04-E01
Switch comp

35130-S04-E01

12
12
35251-S04-A81
Body comp

35251-S04-A81

13
13
35255-SR3-E02
Switch assy

35255-SR3-E02

14
14
35256-SR3-E21
Switch assy

35256-SR3-E21

16
16

35400-SL4-013

Switch assy

DOOR

35400-SL4-013

US $30.29

17
17

35401-SL4-003

Cover

DOOR SWITCH

35401-SL4-003

from US $4.62

18
18

35409-692-013

Screw

FLANGE, 4X12

35409-692-013

from US $2.09

20
20
39731-S04-G00
Bracket

39731-S04-G00

22
22

91551-SW5-003

Clip

HARNESS BAND (BROWN) (151MM)

91551-SW5-003

from US $1.61

23
23

91558-ST5-003

Clip

HARNESS BAND(NATURAL) (135MM)(7MM HOLE)

91558-ST5-003

from US $2.60

24
24

93403-060-120-8

Bolt-washer

6X12

93403-060-120-8

from US $0.45

25
25

93893-050-120-8

Screw-washer

5X12

93893-050-120-8

from US $0.52

26
26

93901-32420

Screw

TAPPING, 3X16

93901-32420

from US $0.37

27
27

93913-14480

Screw

TAPPING, 4X16 (PO)

93913-14480

from US $0.37

Combination switch (RH) Diagram Honda CIVIC General 7067101-547699
