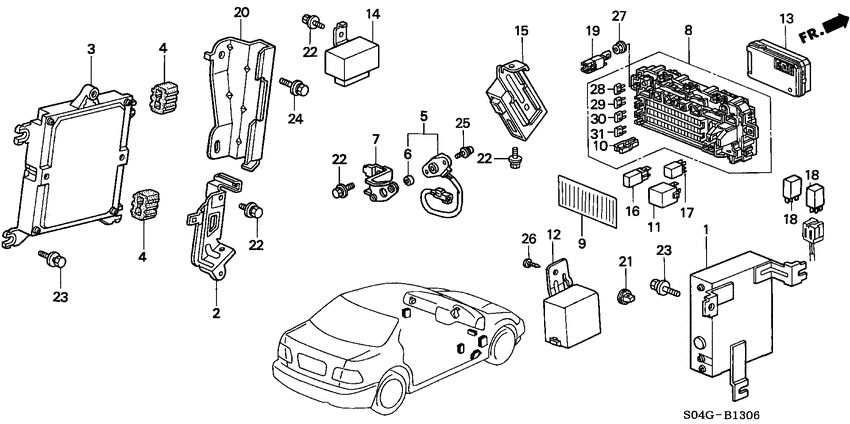

Control unit (CABIN; RH) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Y
- transmission
- 4AT
- Number of doors
- 4
- grade
- GLI
- abs
- +
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
32754-P2A-000
Stay s
|
32754-P2A-000 |
— | ||
|
3
|
3
37820-P2K-Q52
Control module
|
37820-P2K-Q52 |
— | ||
|
4
|
4
37826-P2A-000 RubberCUSHION |
37826-P2A-000 |
US $1.82 |
||
|
8
|
8
38200-S04-A11
Box assy
|
38200-S04-A11 |
— | ||
|
10
|
10
38235-S04-003 PullerMINI FUSE (SUMITOMO) |
38235-S04-003 |
from US $1.58 |
||
|
11
|
11
38300-SE3-013 Relay assyTURN SIGNAL & HAZARD (FR-3309) (MITSUBA) |
38300-SE3-013 |
US $48 |
||
|
11
|
11
38300-SE3-004 Relay assyTURN SIGNAL & HAZARD (166500-0060) (DENSO) |
38300-SE3-004 |
US $48 |
||
|
12
|
12
38380-S04-901 Control unitDOOR LOCK & KEYLESS |
38380-S04-901 |
US $179.52 |
||
|
13
|
13
38600-S04-Q11
Control unit
|
38600-S04-Q11 |
— | ||
|
14
|
14
39400-S10-003 Relay assyMAIN (MITSUBA) |
39400-S10-003 |
from US $62.01 |
||
|
15
|
15
39500-S04-Q01
Control assy.
|
39500-S04-Q01 |
— | ||
|
16
|
16
39794-SE0-003 Relay assyPOWER(4P)(DENSO) (056700-7250) |
39794-SE0-003 |
US $18.43 |
||
|
16
|
16
39794-SL0-004 Relay assyPOWER(4P) (MITSUBA)(RC-2225)(BLACK) |
39794-SL0-004 |
US $16.51 |
||
|
17
|
17
39794-S04-003 Relay assyPOWER (4P) (MICRO ISO) (MITSUBA) |
39794-S04-003 |
US $15.23 |
||
|
20
|
20
64133-S04-000ZZ BracketELECTRONIC CONTROL UNIT |
64133-S04-000ZZ |
US $13.58 |
||
|
21
|
21
90670-SG0-003 GrommetSCREW, 4MM |
90670-SG0-003 |
US $1.96 |
||
|
22
|
22
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
23
|
23
93404-060-200-8 Bolt-washer6X20 |
93404-060-200-8 |
from US $0.52 |
||
|
24
|
24
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
26
|
26
93903-24420 ScrewTAPPING, 4X16 |
93903-24420 |
from US $0.37 |
||
|
27
|
27
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
28
|
28
98200-40750 FuseMINI (7.5A) |
98200-40750 |
from US $0.52 |
||
|
29
|
29
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
30
|
30
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
||
|
31
|
31
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.52 |
