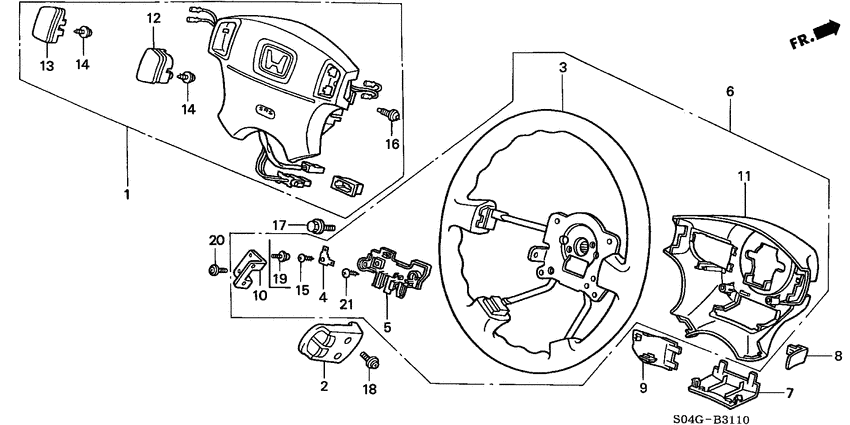

Steering wheel (SRS) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Y
- transmission
- 4AT
- Number of doors
- 4
- grade
- GLI
- abs
- +
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06770-S04-E70ZB
Module kit
|
06770-S04-E70ZB |
— | ||
|
3
|
3
78501-S2G-N61ZA
Grip comp. *nh264l*
|
78501-S2G-N61ZA |
— | ||
|
4
|
4
78508-S2G-N61
Tab
|
78508-S2G-N61 |
— | ||
|
5
|
5
78509-S2G-N61
Cover
|
78509-S2G-N61 |
— | ||
|
7
|
7
78512-S04-N61ZC Cap cBODY COVER *NH264L* |
78512-S04-N61ZC |
US $2.73 |
||
|
8
|
8
78513-S04-N61ZC CapL. BODY COVER *NH264L* |
78513-S04-N61ZC |
US $3.33 |
||
|
9
|
9
78514-S04-N61ZC CapR. BODY COVER *NH264L* |
78514-S04-N61ZC |
US $3.33 |
||
|
11
|
11
78518-S04-N62ZA CoverBODY *NH264L* |
78518-S04-N62ZA |
US $13.18 |
||
|
12
|
12
78521-S04-N82ZD ButtonR. HORN *NH264L* |
78521-S04-N82ZD |
US $15.37 |
||
|
13
|
13
78522-S04-N82ZD ButtonL. HORN *NH264L* |
78522-S04-N82ZD |
US $15.37 |
||
|
14
|
14
90106-SA7-000 Screw-washer4X12 |
90106-SA7-000 |
US $3.60 |
||
| replacement | |||||
|
14
|
14
90133-SJ6-020 Screw-washer4X12 (PO) |
90133-SJ6-020 |
from US $2 |
||
|
15
|
15
93911-24120 ScrewTAPPING, 4X10 (PO) |
93911-24120 |
from US $0.37 |
||
|
16
|
16
90134-S04-A81 BoltHEX., 6X12 |
90134-S04-A81 |
US $1.95 |
||
|
17
|
17
90161-SV4-003 BoltSTEERING HANDLE |
90161-SV4-003 |
US $3.03 |
||
|
21
|
21
93913-25520 ScrewTAPPING, 5X20 (PO) |
93913-25520 |
from US $0.44 |
||
