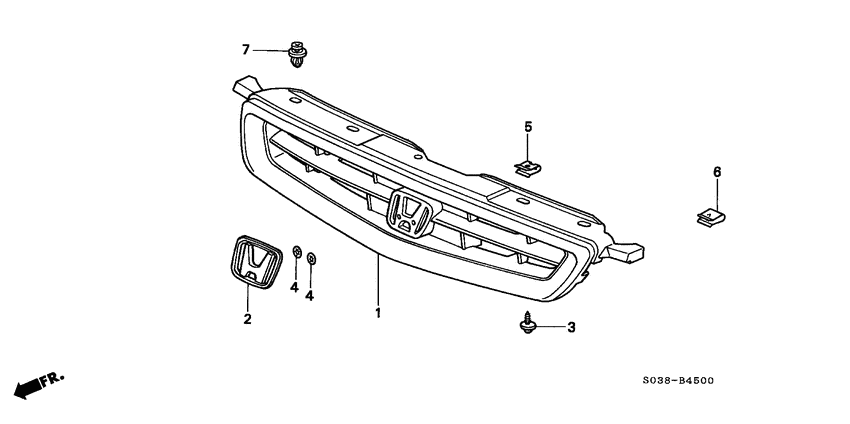

Front grille (1) Diagram Honda CIVIC
- Year
- 1997
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Y
- transmission
- 5MT
- Number of doors
- 3
- grade
- VTI
- power steering
- +
- area code
- KY
- left-hand drive
- +
- srs driver
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71121-S03-000ZF
Grille
|
71121-S03-000ZF |
— | ||
|
1
|
1
71121-S03-000ZC
Grille
|
71121-S03-000ZC |
— | ||
|
1
|
1
71121-S03-000ZE
Grille
|
71121-S03-000ZE |
— | ||
|
1
|
1
71121-S03-000ZM
Grille
|
71121-S03-000ZM |
— | ||
|
1
|
1
71121-S03-000ZD GrilleFR. BUMPER *NH538* |
71121-S03-000ZD |
US $179.20 |
||
|
2
|
2
75700-ST0-000 EmblemFR. CENTER (H) |
75700-ST0-000 |
US $14.21 |
||
|
3
|
3
90126-SR4-000 Screw-washer5X16 |
90126-SR4-000 |
from US $2.72 |
||
|
4
|
4
90301-ST0-003 push nut, 3mm |
90301-ST0-003 |
from US $1.33 |
||
|
5
|
5
90331-SD5-003 NutSPRING, 5MM |
90331-SD5-003 |
from US $2 |
||
|
6
|
6
90653-SP0-000
Clip
|
90653-SP0-000 |
— | ||
|
7
|
7
91503-SP0-013 Clip ABUMPER |
91503-SP0-013 |
US $4.23 |
||
| replacement | |||||
|
7
|
7
91503-SP0-003 Clip A |
91503-SP0-003 |
from US $2.45 |
||
