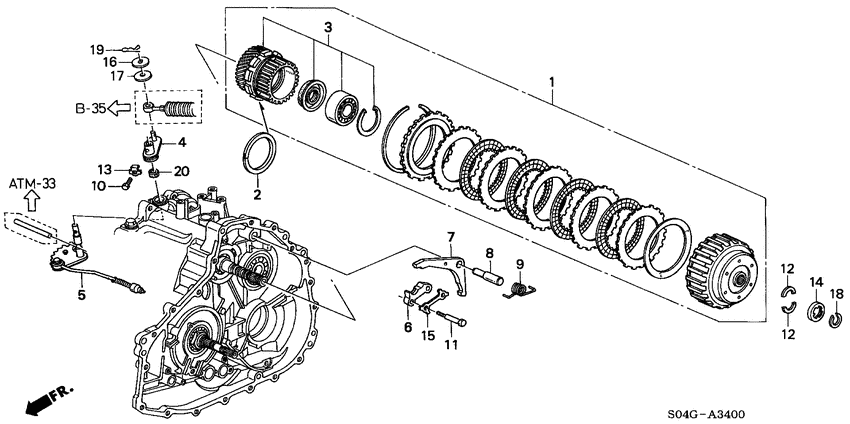

Starting clutch (CVT) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Y
- transmission
- 4AT
- Number of doors
- 4
- grade
- VTI
- abs
- +
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22020-P4V-326
Clutch set
|
22020-P4V-326 |
— | ||
|
2
|
2
22813-P4V-003 RingSEAL |
22813-P4V-003 |
US $12.60 |
||
|
3
|
3
23240-P4V-020 Gear assy.SECONDARY DRIVE |
23240-P4V-020 |
US $234.24 |
||
|
4
|
4
24410-P4V-000 LeverCONTROL |
24410-P4V-000 |
US $18.69 |
||
|
5
|
5
24430-P7D-G00
Shaft comp.
|
24430-P7D-G00 |
— | ||
|
6
|
6
24543-P4V-000 HolderPARKING BRAKE ROD |
24543-P4V-000 |
US $13.58 |
||
|
7
|
7
24561-P4V-000 PawlPARKING BRAKE |
24561-P4V-000 |
US $25.86 |
||
|
8
|
8
24562-PN0-000
Shaft
|
24562-PN0-000 |
— | ||
|
9
|
9
24563-P4V-000
Spring
|
24563-P4V-000 |
— | ||
|
10
|
10
90001-PA9-000 BoltHEX., 6MM |
90001-PA9-000 |
from US $1.89 |
||
|
11
|
11
90001-PY4-003 BoltHEX., 6MM |
90001-PY4-003 |
US $1.68 |
||
|
12
|
12
90430-P4V-000 Cotter25.5 (B) (3.0) |
90430-P4V-000 |
US $3.78 |
||
|
12
|
12
90432-P4V-000 Cotter25.5 (D) (3.2) |
90432-P4V-000 |
US $4.20 |
||
|
12
|
12
90429-P4V-000 Cotter25.5 (A) (2.9) |
90429-P4V-000 |
US $4.20 |
||
|
12
|
12
90431-P4V-000 Cotter25.5 (C) (3.1) |
90431-P4V-000 |
US $4.20 |
||
|
13
|
13
90433-639-000 WasherLOCK, 6MM |
90433-639-000 |
US $7.38 |
||
|
14
|
14
90435-P4V-000 RetainerCOTTER |
90435-P4V-000 |
US $1.89 |
||
|
15
|
15
90448-P4V-000
Washer
|
90448-P4V-000 |
— | ||
|
16
|
16
90555-SF1-000 Washer aSHIFT WIRE(1.6MM) |
90555-SF1-000 |
US $1.95 |
||
|
17
|
17
90556-SF1-000 Washer bSHIFT WIRE (0.5MM) |
90556-SF1-000 |
US $1.55 |
||
|
18
|
18
90611-P4V-000 CirclipEXTERNAL, 29MM |
90611-P4V-000 |
US $1.61 |
||
|
19
|
19
90706-PS5-000 PinSNAP, 9MM |
90706-PS5-000 |
US $2.52 |
||
|
20
|
20
91209-612-003 Oil seal12X22X7 (ARAI) |
91209-612-003 |
from US $5.03 |
