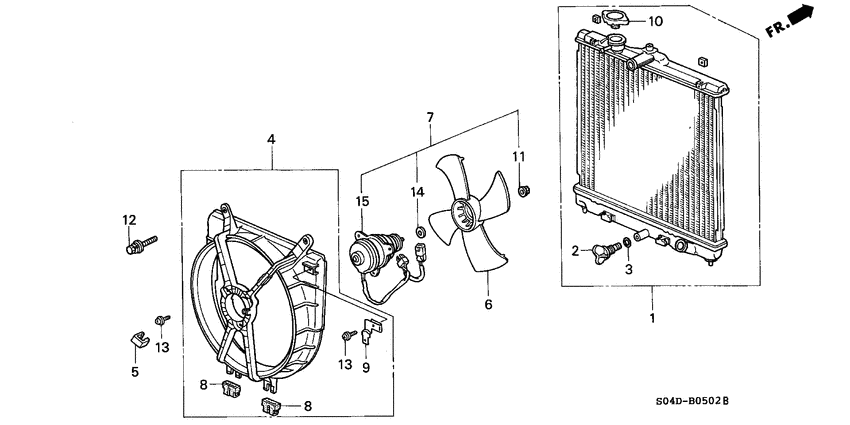

Radiator (UE AUTOMOTIVE) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC
- Sales region
- General
- Engine
- P6FD
- transmission
- 5MT
- Number of doors
- 4
- grade
- VTI
- area code
- PH
- left-hand drive
- +
- power window
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-P00-K02
Radiator comp
|
19010-P00-K02 |
— | ||
|
2
|
2
19011-P00-K02
Cock
|
19011-P00-K02 |
— | ||
|
3
|
3
19012-P00-K02
O-ring
|
19012-P00-K02 |
— | ||
|
4
|
4
19015-P08-014
Shroud comp
|
19015-P08-014 |
— | ||
|
5
|
5
19017-PK1-004 ClipHARNESS(T.RAD) |
19017-PK1-004 |
from US $3.18 |
||
|
6
|
6
19020-P5M-004 Fan compCOOLING (MITSUBA) |
19020-P5M-004 |
US $38.53 |
||
|
8
|
8
19032-PM3-004
Grommet
|
19032-PM3-004 |
— | ||
|
9
|
9
19033-P08-004 ClampTOYO |
19033-P08-004 |
US $4.62 |
||
|
10
|
10
19045-P08-014 Cap comp.RADIATOR (T.RAD) |
19045-P08-014 |
US $22.17 |
||
|
11
|
11
90041-PG6-004 NutHEX., 5MM(MITSUBA) |
90041-PG6-004 |
from US $1.47 |
||
|
12
|
12
90042-PM3-004
Bolt-washer
|
90042-PM3-004 |
— | ||
| replacement | |||||
|
12
|
12
90042-PZ1-004 Bolt-washer6X20 |
90042-PZ1-004 |
US $1.63 |
||
|
13
|
13
90050-PK1-004 Screw-washer4X12(T.RAD) |
90050-PK1-004 |
US $1.95 |
||
|
14
|
14
90403-P5M-004
Spacer
|
90403-P5M-004 |
— | ||
|
15
|
15
19030-P2A-024 MotorCOOLING FAN (MITSUBA) |
19030-P2A-024 |
US $263.68 |
||
