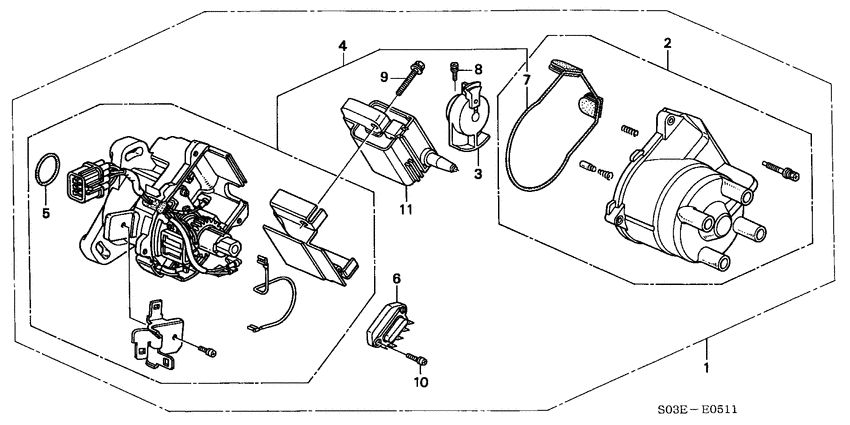

Distributor (HITACHI; 1.5L SOHC VTEC) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Y
- transmission
- CVT
- Number of doors
- 3
- grade
- 1.6IS
- abs
- +
- power steering
- +
- area code
- KG
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30100-P2M-A01
Distributor assy
|
30100-P2M-A01 |
— | ||
|
2
|
2
30102-P2M-A01 Cap assy. |
30102-P2M-A01 |
US $27.90 |
||
|
3
|
3
30103-P0A-A01 HeadROTOR |
30103-P0A-A01 |
US $19.71 |
||
|
4
|
4
30105-P2M-A01
Housing comp
|
30105-P2M-A01 |
— | ||
|
5
|
5
30110-PC6-005
O-ring
|
30110-PC6-005 |
— | ||
|
6
|
6
30120-P0A-A01 Igniter unitHITACHI |
30120-P0A-A01 |
US $211.20 |
||
|
7
|
7
30132-P0A-A01
Packing
|
30132-P0A-A01 |
— | ||
|
8
|
8
30135-P0A-A01 Bolt-washer5X14 |
30135-P0A-A01 |
US $2.07 |
||
|
9
|
9
30136-P0A-A01 Bolt-washer6X30 |
30136-P0A-A01 |
US $2.24 |
||
|
10
|
10
30137-P0A-A01
Screw
|
30137-P0A-A01 |
— | ||
|
11
|
11
30500-PCA-003 CoilIGNITION |
30500-PCA-003 |
US $101.12 |
