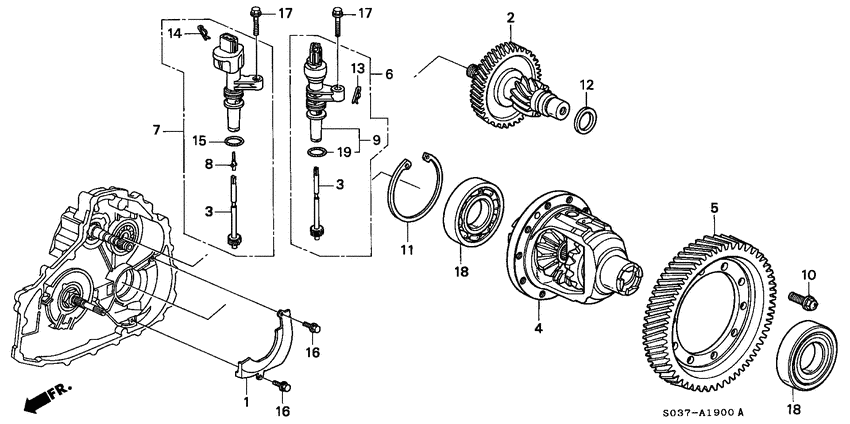

Differential gear/ speed sensor (CVT) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Y
- transmission
- CVT
- Number of doors
- 3
- grade
- 1.6IS
- abs
- +
- power steering
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
4
|
4
41100-P4V-305
Differential comp.
|
41100-P4V-305 |
— | ||
|
6
|
6
78410-S04-961
Sensor assy
|
78410-S04-961 |
— | ||
|
16
|
16
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
17
|
17
95701-080-300-8 BoltFLANGE, 8X30 |
95701-080-300-8 |
from US $0.74 |
||
|
19
|
19
91313-S04-003 O-ring |
91313-S04-003 |
US $2.80 |
