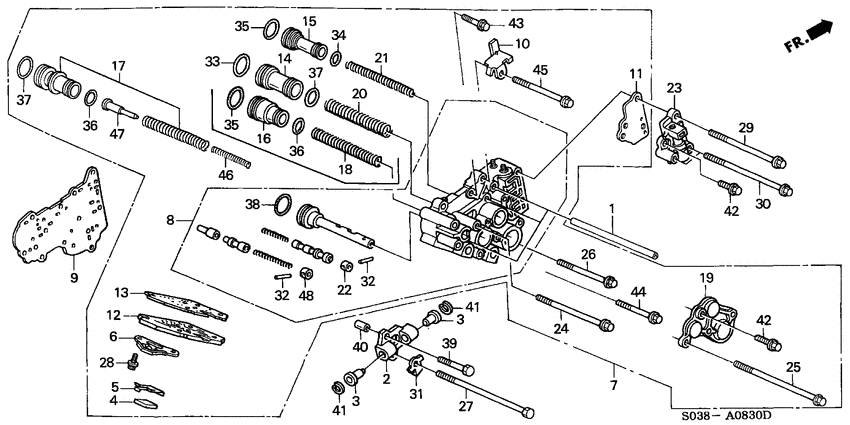

Servo body (S4MA; 1) Diagram Honda CIVIC
- Year
- 1996
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Z
- transmission
- 4AT
- Number of doors
- 3
- grade
- LXI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22743-PF0-000 PipeTHIRD CLUTCH |
22743-PF0-000 |
US $9.10 |
||
|
2
|
2
24278-PP6-000
Base
|
24278-PP6-000 |
— | ||
|
3
|
3
24530-PN1-000
Sleeve comp.
|
24530-PN1-000 |
— | ||
|
4
|
4
25422-PC9-000
Magnet
|
25422-PC9-000 |
— | ||
|
5
|
5
25423-PC9-010
Spring
|
25423-PC9-010 |
— | ||
|
6
|
6
25424-PP6-010
Holder
|
25424-PP6-010 |
— | ||
|
7
|
7
27400-P48-842 Body assySERVO |
27400-P48-842 |
US $392.96 |
||
|
8
|
8
27405-PP6-845
Body sub assy.
|
27405-PP6-845 |
— | ||
|
9
|
9
27412-PP6-903
Plate
|
27412-PP6-903 |
— | ||
|
10
|
10
27413-PL1-000
Stay
|
27413-PL1-000 |
— | ||
|
11
|
11
27414-PL1-000
Plate
|
27414-PL1-000 |
— | ||
|
12
|
12
27441-PP6-020
Cover
|
27441-PP6-020 |
— | ||
|
13
|
13
27442-PP6-030
Plate
|
27442-PP6-030 |
— | ||
|
14
|
14
27572-PP6-800 PistonSECOND ACCUMULATOR |
27572-PP6-800 |
US $14.34 |
||
|
15
|
15
27574-PL4-000 PistonTHIRD ACCUMULATOR |
27574-PL4-000 |
US $12.88 |
||
|
16
|
16
27576-PN6-800
Piston
|
27576-PN6-800 |
— | ||
|
18
|
18
27577-P48-J01
Spring
|
27577-P48-J01 |
— | ||
|
19
|
19
27580-PP6-010
Cover
|
27580-PP6-010 |
— | ||
|
20
|
20
27581-P48-J10
Spring
|
27581-P48-J10 |
— | ||
|
21
|
21
27583-P48-J02
Spring
|
27583-P48-J02 |
— | ||
|
22
|
22
27728-PN0-000 CapREVERSE CONTROL VALVE |
27728-PN0-000 |
US $4.20 |
||
|
23
|
23
27800-PL4-000
Body assy
|
27800-PL4-000 |
— | ||
|
24
|
24
90001-PP6-000 BoltFLANGE, 6X133 |
90001-PP6-000 |
US $2.94 |
||
|
25
|
25
90003-PP6-000 BoltFLANGE, 6X150 |
90003-PP6-000 |
US $2.94 |
||
|
26
|
26
95701-060-900-8 BoltFLANGE, 6X90 2527030 - |
95701-060-900-8 |
from US $0.89 |
||
|
26
|
26
90004-PC9-000 BoltFLANGE, 6X90 00000000 - 2527029 |
90004-PC9-000 |
US $3.36 |
||
|
27
|
27
90004-PP6-000
Bolt
|
90004-PP6-000 |
— | ||
|
28
|
28
90005-PP6-000 BoltSPECIAL, 6X16 |
90005-PP6-000 |
US $1.47 |
||
|
29
|
29
90017-PF4-000 BoltFLANGE, 6X127 |
90017-PF4-000 |
US $2.52 |
||
|
30
|
30
90018-PF4-000 BoltFLANGE, 6X140 |
90018-PF4-000 |
US $3.08 |
||
|
31
|
31
90433-PF4-000
Washer
|
90433-PF4-000 |
— | ||
|
32
|
32
91102-PF4-000 Roller3.5X19.8 |
91102-PF4-000 |
US $1.47 |
||
|
33
|
33
91317-PA9-003 O-ring33.2X2.4 (NOK) |
91317-PA9-003 |
from US $2.52 |
||
|
34
|
34
91321-PF4-004 O-ring18.3X2.4(NOK) |
91321-PF4-004 |
from US $1.85 |
||
|
35
|
35
91324-PF4-004 O-ring28.3X2.4 (NOK) |
91324-PF4-004 |
from US $1.78 |
||
|
36
|
36
91331-PC9-003 O-ring |
91331-PC9-003 |
from US $2.37 |
||
|
37
|
37
91344-PC9-004 O-ring29X2.4 (NOK) |
91344-PC9-004 |
from US $2.44 |
||
|
38
|
38
91344-580-000 O-ring31X2.7 (ARAI) |
91344-580-000 |
US $2 |
||
|
39
|
39
93301-060-300-H BoltHEX., 6X30 |
93301-060-300-H |
from US $0.52 |
||
|
40
|
40
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
41
|
41
94521-15000 CirclipINTERNAL, 15MM |
94521-15000 |
US $0.44 |
||
|
42
|
42
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
43
|
43
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
44
|
44
95701-060-750-8 BoltFLANGE, 6X75 |
95701-060-750-8 |
from US $0.90 |
||
|
45
|
45
95701-060-850-8 BoltFLANGE, 6X85 |
95701-060-850-8 |
from US $0.89 |
||
|
48
|
48
27728-PN0-000 CapREVERSE CONTROL VALVE |
27728-PN0-000 |
US $4.20 |
