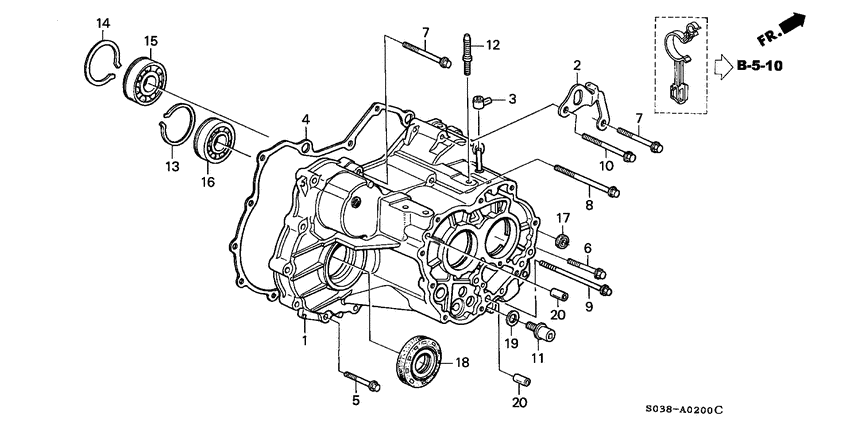

Transmission housing (S4MA) Diagram Honda CIVIC
- Year
- 1996
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Z
- transmission
- 4AT
- Number of doors
- 3
- grade
- LXI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21210-PL4-060
Case comp.
00000000 - 2527029 |
21210-PL4-060 |
— | ||
|
1
|
1
21210-P4M-000 Case comp.TRANSMISSION 2527030 - |
21210-P4M-000 |
US $473.60 |
||
|
2
|
2
21232-PL4-010 HangerTRANSMISSION |
21232-PL4-010 |
US $8.26 |
||
|
3
|
3
21396-P20-000 CapBREATHER 2527030 - |
21396-P20-000 |
from US $3.18 |
||
|
4
|
4
21811-PL4-S01 GasketTORQUE CONVERTER CASE |
21811-PL4-S01 |
US $29.06 |
||
|
5
|
5
90015-PF0-000 BoltFLANGE, 8X53 |
90015-PF0-000 |
US $2.59 |
||
|
6
|
6
90016-PF0-000 BoltFLANGE, 8X70 |
90016-PF0-000 |
US $2.94 |
||
|
7
|
7
90016-PL4-000 BoltFLANGE, 8X90 |
90016-PL4-000 |
US $2.94 |
||
|
8
|
8
90017-PL4-000 BoltFLANGE, 8X125 |
90017-PL4-000 |
US $3.15 |
||
|
9
|
9
90017-PP6-000 BoltFLANGE, 8X176 |
90017-PP6-000 |
from US $4.06 |
||
|
10
|
10
90018-PL4-000 BoltFLANGE, 8X115 |
90018-PL4-000 |
US $3.08 |
||
|
11
|
11
90081-PB6-000 BoltPLUG, 14MM |
90081-PB6-000 |
from US $6.07 |
||
|
12
|
12
90380-S04-950 BoltSTUD, 10X69 |
90380-S04-950 |
US $4.90 |
||
|
13
|
13
90603-PH0-000 RingSNAP, 64MM |
90603-PH0-000 |
US $3.50 |
||
|
14
|
14
90609-PH0-000 RingSNAP, 70MM |
90609-PH0-000 |
US $3.08 |
||
|
15
|
15
91002-PL4-003 BearingRADIAL BALL, 26X70X17 (NTN) |
91002-PL4-003 |
US $14.72 |
||
|
16
|
16
91004-PL4-003 BearingRADIAL BALL, 26X64X16 |
91004-PL4-003 |
US $14 |
||
|
17
|
17
91201-PA9-004 Oil seal9X18X7 (ARAI) |
91201-PA9-004 |
from US $3.33 |
||
|
18
|
18
91206-689-005 Oil seal35X76X9 (NOK) |
91206-689-005 |
from US $21.13 |
||
|
19
|
19
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
20
|
20
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
