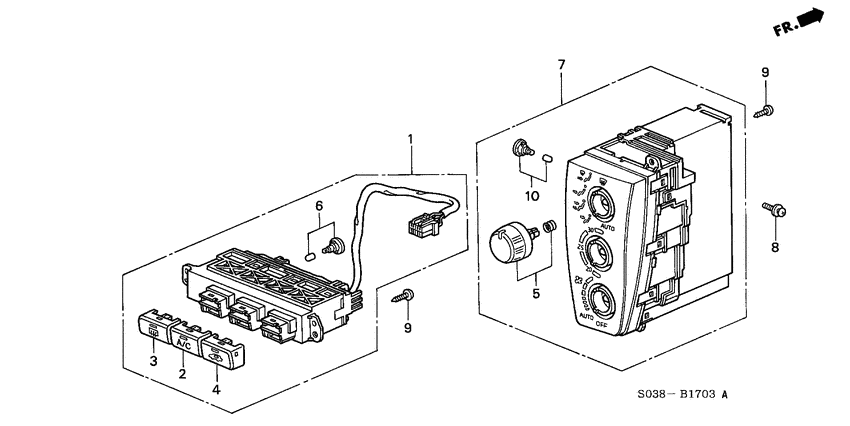

Heater control (AUTO; RH; 2) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Z
- transmission
- 5MT
- Number of doors
- 3
- grade
- VTI
- abs
- +
- power steering
- +
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79510-S04-J11ZA
Control assy.
|
79510-S04-J11ZA |
— | ||
|
2
|
2
79601-S04-J11
Knob
|
79601-S04-J11 |
— | ||
|
3
|
3
79602-S04-J11
Knob
|
79602-S04-J11 |
— | ||
|
4
|
4
79603-S04-J11
Knob
|
79603-S04-J11 |
— | ||
|
5
|
5
79604-S04-J11
Knob set
|
79604-S04-J11 |
— | ||
|
6
|
6
79609-S04-J11 BulbNEO WEDGE |
79609-S04-J11 |
US $2.52 |
||
|
7
|
7
80600-S04-951ZA
Control comp.
|
80600-S04-951ZA |
— | ||
|
8
|
8
93891-050-120-8 Screw-washer5X12 |
93891-050-120-8 |
from US $0.44 |
||
|
9
|
9
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
|
10
|
10
79609-S04-J21 BulbNEO WEDGE |
79609-S04-J21 |
US $2.52 |
