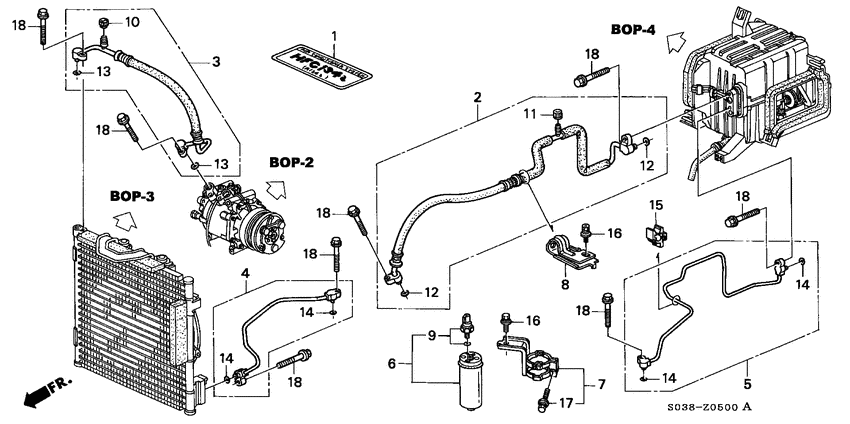

Air conditioner (HOSES/PIPES) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Z
- transmission
- 5MT
- Number of doors
- 3
- grade
- VTI
- abs
- +
- power steering
- +
- area code
- KU
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
80050-SP0-000 LabelAIR CONDITIONER CAUTION (HFC134A) |
80050-SP0-000 |
from US $1.35 |
||
|
2
|
2
80311-S04-003
Hose comp.
|
80311-S04-003 |
— | ||
|
2
|
2
80311-S01-A11
Hose comp.
|
80311-S01-A11 |
— | ||
|
3
|
3
80315-S01-A21
Hose comp.
|
80315-S01-A21 |
— | ||
|
3
|
3
80315-S01-A01
Hose comp.
|
80315-S01-A01 |
— | ||
|
3
|
3
80315-S04-003 Hose comp.DISCHARGE (NICHIRIN) |
80315-S04-003 |
US $160 |
||
|
4
|
4
80331-S04-003
Pipe
|
80331-S04-003 |
— | ||
|
4
|
4
80331-S01-A01
Pipe
|
80331-S01-A01 |
— | ||
|
5
|
5
80341-S01-A11
Pipe
|
80341-S01-A11 |
— | ||
|
5
|
5
80341-S04-003 PipeRECEIVER (SAK) |
80341-S04-003 |
US $62.72 |
||
|
6
|
6
80351-S01-A11 Receiver compPARKER |
80351-S01-A11 |
US $134.40 |
||
|
6
|
6
80351-S04-901 Receiver compFUJI |
80351-S04-901 |
US $134.40 |
||
|
6
|
6
80351-S04-003 Receiver compSHOWA |
80351-S04-003 |
US $135.68 |
||
|
7
|
7
80352-S01-A00 BracketLIQUID TANK |
80352-S01-A00 |
US $13.30 |
||
|
7
|
7
80352-S04-000
Bracket
|
80352-S04-000 |
— | ||
|
8
|
8
80362-SR3-000
Clamp
|
80362-SR3-000 |
— | ||
|
9
|
9
80440-SS0-901
Switch
|
80440-SS0-901 |
— | ||
|
9
|
9
80440-SK3-901
Switch
|
80440-SK3-901 |
— | ||
|
10
|
10
80865-SS0-A11 Cap hVALVE(PARKER) |
80865-SS0-A11 |
US $3.43 |
||
|
10
|
10
80865-ST0-003 Cap hVALVE (NICHIRIN) |
80865-ST0-003 |
US $2.38 |
||
|
11
|
11
80866-ST0-003 Cap lVALVE (NICHIRIN) |
80866-ST0-003 |
from US $2.38 |
||
|
11
|
11
80866-ST7-A11 Cap lVALVE (PARKER) |
80866-ST7-A11 |
US $5.04 |
||
|
12
|
12
80871-ST7-000 O-ring5/8" |
80871-ST7-000 |
from US $2.69 |
||
|
13
|
13
80872-ST7-000 O-ring1/2" |
80872-ST7-000 |
from US $2.52 |
||
|
14
|
14
80873-ST7-000 O-ring8MM |
80873-ST7-000 |
from US $2.74 |
||
|
15
|
15
91548-SR3-003 Clip8MM |
91548-SR3-003 |
US $1.26 |
||
|
16
|
16
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
17
|
17
93403-050-250-4 Bolt-washer5X25 |
93403-050-250-4 |
from US $0.74 |
||
|
17
|
17
93403-060-200-8 Bolt-washer6X20 |
93403-060-200-8 |
from US $0.62 |
||
|
18
|
18
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
