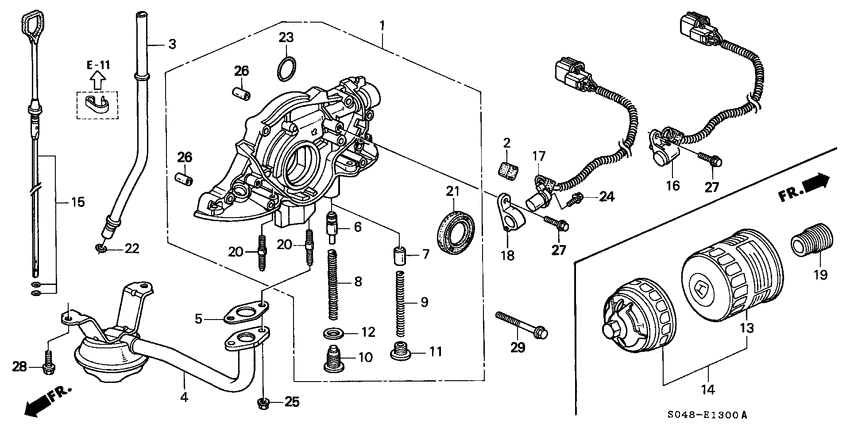

Oil pump/oil strainer (EX/EXI/GLI/LXI/VTI) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- EXI
- power steering
- +
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-P2A-003 Pump assy.OIL (YAMADA) |
15100-P2A-003 |
US $156.16 |
||
|
2
|
2
15121-P2A-000 GrommetOIL PUMP |
15121-P2A-000 |
US $2.24 |
||
|
3
|
3
15200-P2A-000 PipeOIL LEVEL |
15200-P2A-000 |
US $11.88 |
||
|
4
|
4
15220-P2A-000
Strainer comp.
|
15220-P2A-000 |
— | ||
|
5
|
5
15221-PZ1-000 PackingOIL STRAINER |
15221-PZ1-000 |
from US $1.92 |
||
|
6
|
6
15231-PM3-000
Valve
|
15231-PM3-000 |
— | ||
|
8
|
8
15232-PM3-000
Spring
|
15232-PM3-000 |
— | ||
|
10
|
10
15233-P2A-003 BoltSEALING, 14MM (YAMADA) |
15233-P2A-003 |
US $3.92 |
||
|
12
|
12
15302-PE0-300 WasherSEALING, 14MM |
15302-PE0-300 |
US $8.96 |
||
|
13
|
13
15400-PT1-K04 CartridgeOIL FILTER (TSUCHIYA) |
15400-PT1-K04 |
US $16 |
||
|
13
|
13
15400-PR3-014
OIL FILTER (TOYO ROKI)
|
15400-PR3-014 |
— | ||
| replacement | |||||
|
13
|
13
15400-RTA-003 OIL FILTER (MAHLE TENNEX) |
15400-RTA-003 |
US $16.32 |
||
|
13
|
13
15400-PT1-K01 CartridgeOIL FILTER (ACAP) |
15400-PT1-K01 |
US $16 |
||
|
14
|
14
15400-PR3-315 Cartridge setOIL FILTER (TOYO ROKI) |
15400-PR3-315 |
US $16.32 |
||
|
15
|
15
15650-P2A-000 Gauge comp.OIL LEVEL |
15650-P2A-000 |
US $10.78 |
||
|
19
|
19
90015-PH1-013 HolderOIL FILTER |
90015-PH1-013 |
from US $3.26 |
||
|
20
|
20
90042-PR3-000 BoltSTUD, 6X28 |
90042-PR3-000 |
US $2.28 |
||
|
21
|
21
91212-P01-003 Oil seal31X46X7 (NOK) |
91212-P01-003 |
from US $5.48 |
||
|
22
|
22
91308-PH9-000 O-ring8.8X1.9 |
91308-PH9-000 |
from US $2.15 |
||
| replacement | |||||
|
22
|
22
91302-GE0-000 O-ring (8.8x1.9) |
91302-GE0-000 |
from US $2.25 |
||
|
23
|
23
91308-PK1-003 O-ring26.2X2.4 (NOK) |
91308-PK1-003 |
from US $1.93 |
||
|
25
|
25
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
26
|
26
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
28
|
28
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.34 |
||
|
29
|
29
95701-060-350-8 BoltFLANGE, 6X35 |
95701-060-350-8 |
from US $0.59 |
||
