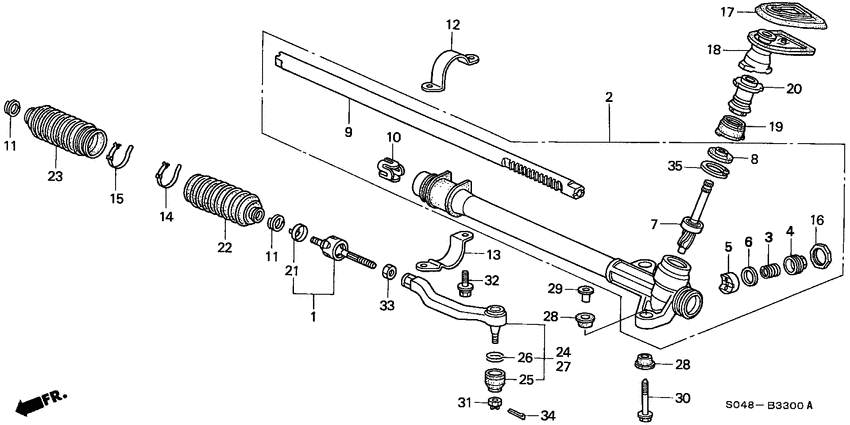

Steering gear box Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Z
- transmission
- 5MT
- Number of doors
- 4
- grade
- LXI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53010-S04-000 End setRACK |
53010-S04-000 |
US $89.76 |
||
|
2
|
2
53040-S04-A01
Box comp
|
53040-S04-A01 |
— | ||
|
3
|
3
53413-SH3-003 SpringRACK GUIDE PRESSURE |
53413-SH3-003 |
from US $2.37 |
||
|
4
|
4
53414-679-013 ScrewRACK GUIDE |
53414-679-013 |
from US $9.94 |
||
|
5
|
5
53416-SH3-003 GuideSTEERING RACK |
53416-SH3-003 |
US $19.20 |
||
|
6
|
6
53418-SC2-003 WasherDISK |
53418-SC2-003 |
from US $2.74 |
||
|
7
|
7
53421-S04-A01
Pinion comp.
|
53421-S04-A01 |
— | ||
|
8
|
8
53426-SE0-951
Dust seal
|
53426-SE0-951 |
— | ||
|
9
|
9
53427-S04-A01
Rack
|
53427-S04-A01 |
— | ||
|
10
|
10
53430-SR3-000 BushRACK END |
53430-SR3-000 |
from US $6.66 |
||
|
11
|
11
53434-SD9-000 ClipTIE ROD |
53434-SD9-000 |
US $2.38 |
||
| replacement | |||||
|
11
|
11
53434-S04-J51 CLIP, TIE ROD |
53434-S04-J51 |
from US $3.89 |
||
|
12
|
12
53435-S04-J50 BracketSTEERING GEAR BOX UPPER |
53435-S04-J50 |
US $39.49 |
||
|
13
|
13
53438-S04-J50 BracketSTEERING GEAR BOX |
53438-S04-J50 |
US $39.49 |
||
|
14
|
14
53449-SL0-A00
Band b
|
53449-SL0-A00 |
— | ||
| replacement | |||||
|
14
|
14
53449-S04-J51 Band bBELLOWS |
53449-S04-J51 |
US $6.51 |
||
|
15
|
15
53449-SM4-000 BandBELLOWS |
53449-SM4-000 |
US $5.33 |
||
|
16
|
16
53458-SE0-003 NutRACK SCREW LOCK |
53458-SE0-003 |
US $4 |
||
| replacement | |||||
|
16
|
16
53458-S01-A51 NutLOCK |
53458-S01-A51 |
US $10.27 |
||
|
17
|
17
53501-SR3-000 Grommet aSTEERING |
53501-SR3-000 |
US $8.73 |
||
|
18
|
18
53502-SR3-A51
Grommet b
|
53502-SR3-A51 |
— | ||
|
19
|
19
53503-SB2-010 Grommet cSTEERING GEAR BOX |
53503-SB2-010 |
US $6.07 |
||
|
20
|
20
53504-SR3-A00
Spacer
|
53504-SR3-A00 |
— | ||
|
21
|
21
53536-SR3-000 WasherTIE ROD LOCK |
53536-SR3-000 |
US $9.67 |
||
|
22
|
22
53537-SR3-J02 Dust sealTIE ROD |
53537-SR3-J02 |
US $17.41 |
||
|
23
|
23
53537-SR3-N02 Dust sealTIE ROD |
53537-SR3-N02 |
US $16.32 |
||
|
24
|
24
53540-S04-013 End compR. TIE ROD |
53540-S04-013 |
from US $70.45 |
||
|
25
|
25
53546-S84-003 BootTIE ROD END (NOK) |
53546-S84-003 |
US $9.77 |
||
|
27
|
27
53560-S04-013 End compL. TIE ROD |
53560-S04-013 |
US $89.01 |
||
|
28
|
28
53685-SH3-000 BushSTEERING GEAR BOX MOUNTING |
53685-SH3-000 |
US $4.07 |
||
|
29
|
29
53686-SH3-010 CollarSTEERING GEAR BOX MOUNTING |
53686-SH3-010 |
US $5.92 |
||
|
30
|
30
90108-SH3-003 BoltGEAR BOX MOUNTING (10X55) |
90108-SH3-003 |
US $4.88 |
||
|
31
|
31
94030-10080 NutHEX., 10MM |
94030-10080 |
from US $0.52 |
||
|
32
|
32
93402-100-250-8 Bolt-washer10X25 |
93402-100-250-8 |
from US $0.81 |
||
|
33
|
33
94002-142-800-S NUT, HEX., 14MM |
94002-142-800-S |
US $0.74 |
||
|
34
|
34
94201-20180 PinSPLIT, 2.0X18 |
94201-20180 |
from US $0.37 |
||
| replacements | |||||
|
34
|
34
94201-29220
Pin
|
94201-29220 |
— | ||
|
34
|
34
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
34
|
34
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
35
|
35
94520-35000 CirclipINTERNAL, 35MM |
94520-35000 |
from US $0.90 |
||
