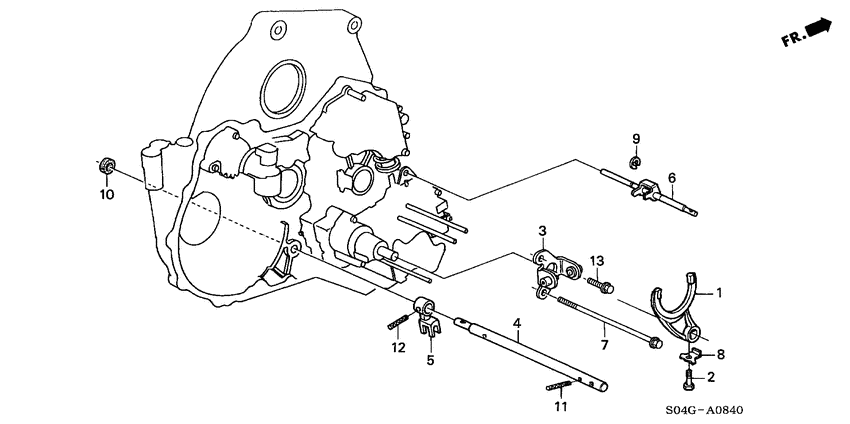

Control shaft (1.5L SOHC) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- EXI
- power steering
- +
- area code
- KT
- right-hand drive
- +
- sunroof
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24111-PP6-010 ForkREVERSE SHIFT |
24111-PP6-010 |
US $30.59 |
||
|
2
|
2
24282-634-000 BoltSHAFT FORK SETTING |
24282-634-000 |
from US $1.40 |
||
|
3
|
3
24300-PFL-000 Detent comp.SERVO |
24300-PFL-000 |
US $12.18 |
||
|
4
|
4
24411-PL4-300
Shaft
|
24411-PL4-300 |
— | ||
|
5
|
5
24421-PP6-000 LeverMANUAL VALVE |
24421-PP6-000 |
US $14.72 |
||
|
6
|
6
27490-PF4-701
Shaft comp.
|
27490-PF4-701 |
— | ||
|
7
|
7
90018-PF4-000 BoltFLANGE, 6X140 |
90018-PF4-000 |
US $3.08 |
||
|
8
|
8
90433-639-000 WasherLOCK, 6MM |
90433-639-000 |
US $7.38 |
||
|
9
|
9
90607-081-000 Circlip7MM |
90607-081-000 |
from US $2.37 |
||
|
10
|
10
91209-612-000
Oil seal
|
91209-612-000 |
— | ||
| replacement | |||||
|
10
|
10
91209-612-003 Oil seal12X22X7 (ARAI) |
91209-612-003 |
from US $5.03 |
||
|
11
|
11
94305-40162 PinSPRING, 4X16 |
94305-40162 |
from US $0.81 |
||
|
12
|
12
94305-50182 PinSPRING, 5X18 |
94305-50182 |
from US $0.81 |
||
|
13
|
13
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
