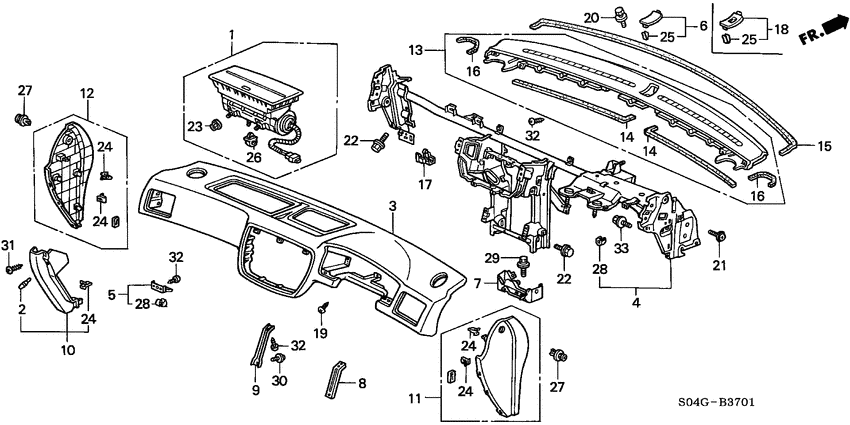

Instrument panel (RH) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- EXI
- abs
- +
- power steering
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06780-S04-E81ZB
Module kit
|
06780-S04-E81ZB |
— | ||
|
2
|
2
66418-SB2-000
Stopper
|
66418-SB2-000 |
— | ||
|
3
|
3
77102-S04-N90ZC
Pad
|
77102-S04-N90ZC |
— | ||
|
4
|
4
77106-S04-U21ZZ
Frame comp
|
77106-S04-U21ZZ |
— | ||
|
5
|
5
77108-S04-000ZZ BracketPASSENGER LOWER COVER |
77108-S04-000ZZ |
US $3.92 |
||
|
7
|
7
77169-S04-000ZZ BracketINSTRUMENT CENTER |
77169-S04-000ZZ |
US $13.58 |
||
|
8
|
8
77172-S04-000ZZ Plate b |
77172-S04-000ZZ |
US $2.94 |
||
|
9
|
9
77173-S04-000ZZ Plate c |
77173-S04-000ZZ |
US $2.94 |
||
|
10
|
10
77220-S04-000ZB Cover assy.PASSENGER INSTRUMENT LOWER *NH264L* |
77220-S04-000ZB |
US $25.60 |
||
|
11
|
11
77225-S04-G00ZC
Cover assy.
|
77225-S04-G00ZC |
— | ||
|
12
|
12
77226-S04-G00ZC
Cover assy.
|
77226-S04-G00ZC |
— | ||
|
13
|
13
77461-S04-000ZA GarnishFR. DEFROSTER *NH264L* |
77461-S04-000ZA |
US $40.32 |
||
|
14
|
14
77463-S04-000 SealFR. DEFROSTER INNER |
77463-S04-000 |
US $2.94 |
||
|
15
|
15
77466-S04-000 SealFR. INSTRUMENT |
77466-S04-000 |
US $9.80 |
||
|
16
|
16
77468-S04-000 SealFR. DEFROSTER GARNISH SIDE |
77468-S04-000 |
US $2.03 |
||
|
17
|
17
77982-S04-N81 HolderCOUPLER (2P) |
77982-S04-N81 |
US $2.52 |
||
|
18
|
18
80515-S04-940ZA
Lid
|
80515-S04-940ZA |
— | ||
|
19
|
19
90101-S03-900 ScrewTAPPING, 4X16 |
90101-S03-900 |
US $1.05 |
||
|
20
|
20
90128-S04-000 BoltSPECIAL, 6X25 |
90128-S04-000 |
US $4.66 |
||
|
21
|
21
90140-SH3-003 Bolt-washer5X18 |
90140-SH3-003 |
US $2.44 |
||
|
22
|
22
90157-SA0-000 Bolt-washer8X25 |
90157-SA0-000 |
US $2.37 |
||
|
23
|
23
90321-SP0-A80 Nut-washer6MM |
90321-SP0-A80 |
from US $1.26 |
||
|
24
|
24
90610-SR3-003 ClipGARNISH (KATO) |
90610-SR3-003 |
US $1.72 |
||
|
25
|
25
90666-SD4-003 ClipFITTING |
90666-SD4-003 |
from US $1.92 |
||
|
26
|
26
91508-SA4-003 ClipWIRE HARNESS (BLACK) |
91508-SA4-003 |
from US $2.73 |
||
|
27
|
27
91550-SH3-003ZT ClipRR. PANEL LINING *NH167L* |
91550-SH3-003ZT |
US $2.86 |
||
|
28
|
28
91641-SM4-003 GrommetSCREW, 4MM |
91641-SM4-003 |
US $1.95 |
||
|
29
|
29
93415-080-250-8 Bolt-washer8X25 |
93415-080-250-8 |
US $0.81 |
||
|
30
|
30
93891-050-120-8 Screw-washer5X12 |
93891-050-120-8 |
from US $0.44 |
||
|
31
|
31
93903-44480 ScrewTAPPING, 4X16 |
93903-44480 |
from US $0.37 |
||
|
32
|
32
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
|
33
|
33
95701-080-250-0 BoltFLANGE, 8X25 |
95701-080-250-0 |
from US $0.74 |
