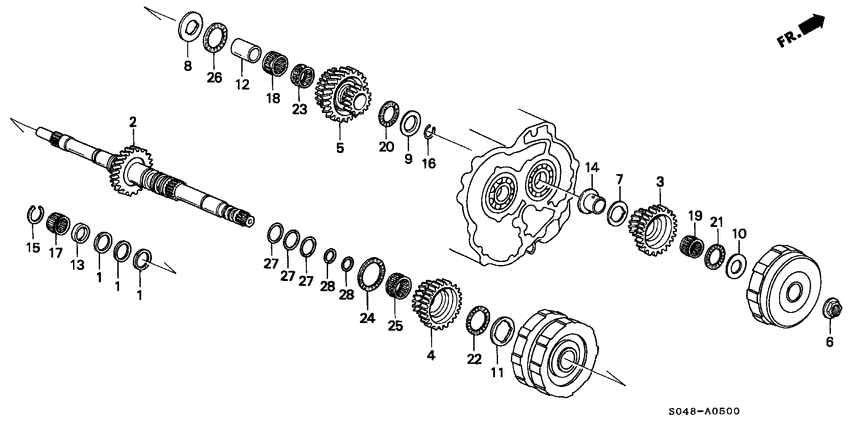

Mainshaft (1.5L SOHC) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- EXI
- power steering
- +
- area code
- KT
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22814-P0X-003 RingSEALING, 32MM |
22814-P0X-003 |
US $3.78 |
||
|
2
|
2
23210-P4M-911 Mainshaft comp.6004740 - |
23210-P4M-911 |
US $249.60 |
||
|
2
|
2
23210-P4M-910
Mainshaft comp.
00000000 - 6004739 |
23210-P4M-910 |
— | ||
|
3
|
3
23411-PFL-000 GearMAINSHAFT LOW |
23411-PFL-000 |
US $62.59 |
||
|
4
|
4
23431-PL4-J02
Gear
|
23431-PL4-J02 |
— | ||
|
5
|
5
23461-P4M-910 GearMAINSHAFT FOURTH |
23461-P4M-910 |
US $140.80 |
||
|
6
|
6
90201-PL4-000 NutFLANGE, 19MM |
90201-PL4-000 |
US $4.13 |
||
|
8
|
8
90406-PR0-000
Washer
6011167 - |
90406-PR0-000 |
— | ||
|
8
|
8
90407-PL4-000
Washer
00000000 - 6011166 |
90407-PL4-000 |
— | ||
|
9
|
9
90417-PC9-000
Washer
|
90417-PC9-000 |
— | ||
|
10
|
10
90422-P7C-000
Washer
|
90422-P7C-000 |
— | ||
|
11
|
11
90443-PC9-010
Washer
|
90443-PC9-010 |
— | ||
|
11
|
11
90450-PC9-000
Washer
|
90450-PC9-000 |
— | ||
|
11
|
11
90445-PC9-010
Washer
|
90445-PC9-010 |
— | ||
|
11
|
11
90447-PC9-010
Washer
|
90447-PC9-010 |
— | ||
|
11
|
11
90442-PC9-010
Washer
|
90442-PC9-010 |
— | ||
|
11
|
11
90449-PC9-010
Washer
|
90449-PC9-010 |
— | ||
|
11
|
11
90444-PC9-010
Washer
|
90444-PC9-010 |
— | ||
|
11
|
11
90446-PC9-010
Washer
|
90446-PC9-010 |
— | ||
|
11
|
11
90441-PC9-010
Washer
|
90441-PC9-010 |
— | ||
|
11
|
11
90448-PC9-010
Washer
|
90448-PC9-010 |
— | ||
|
12
|
12
90502-PH0-000 CollarMAINSHAFT FOURTH GEAR 00000000 - 6011166 |
90502-PH0-000 |
US $13.72 |
||
|
12
|
12
90502-P4M-910 CollarMAINSHAFT FOURTH GEAR 6011167 - |
90502-P4M-910 |
US $15.23 |
||
|
13
|
13
90506-PL4-000 CollarDISTANCE, 20MM |
90506-PL4-000 |
US $6.16 |
||
|
14
|
14
90508-P7C-000 Collar23MM |
90508-P7C-000 |
US $13.82 |
||
|
15
|
15
90603-689-900 CirclipEXTERNAL, 20MM |
90603-689-900 |
US $2.10 |
||
|
16
|
16
90613-PA9-000 RingSNAP, 26MM |
90613-PA9-000 |
US $2 |
||
|
17
|
17
91011-P68-003 BearingNEEDLE, 20X26X17 |
91011-P68-003 |
US $7.70 |
||
|
18
|
18
91011-P56-003 BearingNEEDLE, 32X38X20 (NTN) |
91011-P56-003 |
US $8.68 |
||
|
19
|
19
91012-PZ4-003 BearingNEEDLE, 28X33X16.8 (NTN) |
91012-PZ4-003 |
from US $6.02 |
||
|
20
|
20
91018-P56-003 BearingTHRUST NEEDLE, 32X44X2 (NTN) |
91018-P56-003 |
from US $5.04 |
||
|
21
|
21
91019-PL1-003 BearingTHRUST NEEDLE, 28X43X2 (NTN) |
91019-PL1-003 |
US $7 |
||
|
22
|
22
91023-PS5-003 BearingTHRUST NEEDLE, 36X52X2 (NTN) |
91023-PS5-003 |
US $7 |
||
|
23
|
23
91024-PF4-003 BearingNEEDLE, 32X38X14 (NTN) |
91024-PF4-003 |
US $7.98 |
||
|
24
|
24
91026-PS5-003 BearingTHRUST NEEDLE, 42X58X2 (TOYO) |
91026-PS5-003 |
US $7 |
||
|
25
|
25
91028-PL4-003 BearingNEEDLE, 36X41X14.8 |
91028-PL4-003 |
US $7.98 |
||
|
26
|
26
91031-PC9-003 BearingTHRUST NEEDLE, 39X54X2 (NTN) |
91031-PC9-003 |
US $7.28 |
||
|
27
|
27
91307-PA9-003 O-ring 31.2X1.9 (ARAI)31.2X1.9 (ARAI) |
91307-PA9-003 |
from US $2.44 |
||
|
28
|
28
91308-PH0-013 O-ring17.8X1.9 (NOK) |
91308-PH0-013 |
US $1.55 |
