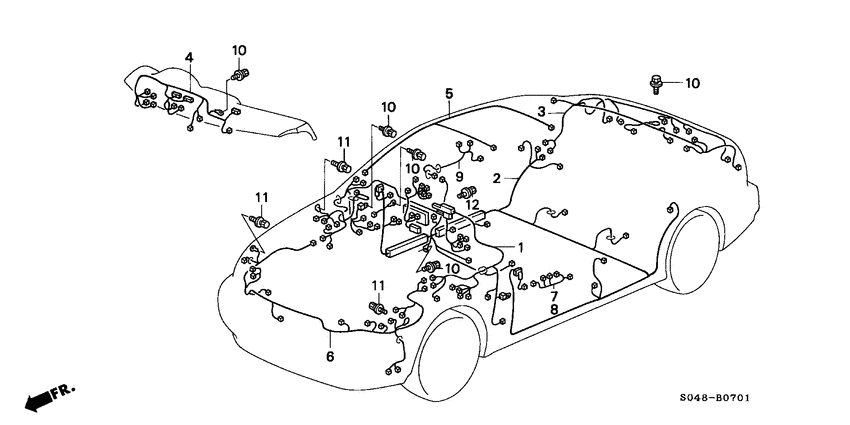

Wire harness (RH) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- EXI
- power steering
- +
- area code
- KT
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32100-S03-T41
Harness
|
32100-S03-T41 |
— | ||
|
2
|
2
32107-S04-T71
Harness
|
32107-S04-T71 |
— | ||
|
3
|
3
32108-S04-N20
Harness
|
32108-S04-N20 |
— | ||
|
4
|
4
32117-S04-T70
Harness
|
32117-S04-T70 |
— | ||
|
5
|
5
32155-S04-N01
Cord assy
|
32155-S04-N01 |
— | ||
|
6
|
6
32200-S04-N02 HarnessENGINE ROOM WIRE 00000000 - XS211192 |
32200-S04-N02 |
US $179.20 |
||
|
6
|
6
32200-S04-N03
Harness
XS211193 - |
32200-S04-N03 |
— | ||
|
7
|
7
32751-S04-950
Harness
|
32751-S04-950 |
— | ||
|
8
|
8
32752-S04-N11 HarnessPASSENGER DOOR WIRE |
32752-S04-N11 |
US $55.30 |
||
|
8
|
8
32751-S04-950
Harness
|
32751-S04-950 |
— | ||
|
9
|
9
32755-S04-000 HarnessRR. DOOR WIRE (POWER WINDOW) |
32755-S04-000 |
US $38.78 |
||
|
10
|
10
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
11
|
11
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
12
|
12
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
