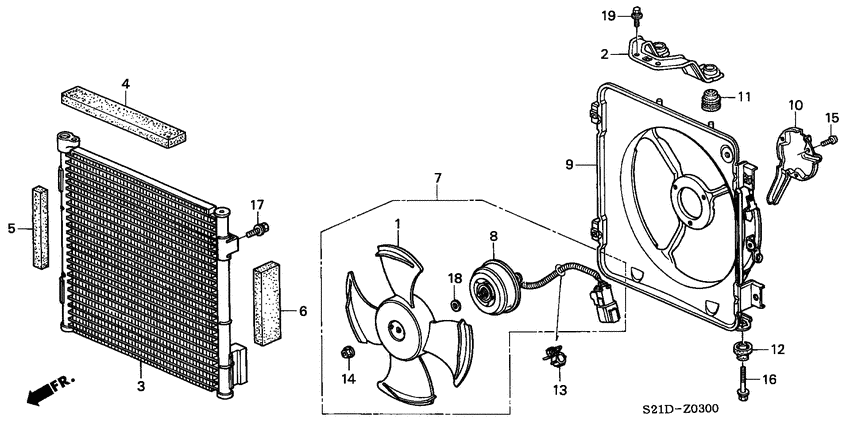

Air conditioner (CONDENSER) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- Engine
- P6DD
- transmission
- 5MT
- Number of doors
- 4
- grade
- LXI
- power steering
- +
- area code
- PH
- left-hand drive
- +
- power window
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38611-P8C-A01 Fan compCOOLING (MITSUBA) |
38611-P8C-A01 |
US $30.85 |
||
|
2
|
2
80107-S04-K01
Bracket
|
80107-S04-K01 |
— | ||
|
3
|
3
80110-S04-K01
Condenser comp.
|
80110-S04-K01 |
— | ||
|
4
|
4
80115-S04-K01
Seal
|
80115-S04-K01 |
— | ||
|
5
|
5
80116-S04-K01
Seal
|
80116-S04-K01 |
— | ||
|
6
|
6
80117-S04-K01
Seal
|
80117-S04-K01 |
— | ||
|
8
|
8
80151-S04-003 MotorCOOLING FAN |
80151-S04-003 |
US $226.56 |
||
|
9
|
9
80161-S04-K01
Shroud comp.
|
80161-S04-K01 |
— | ||
|
10
|
10
80162-SR3-K01
Protector
|
80162-SR3-K01 |
— | ||
|
11
|
11
80176-SR3-K01
Rubber
|
80176-SR3-K01 |
— | ||
|
13
|
13
80465-SR3-K01
Clip
|
80465-SR3-K01 |
— | ||
|
14
|
14
90041-PAA-A01 NutTOOTHED, 5MM |
90041-PAA-A01 |
US $1.47 |
||
|
15
|
15
90134-SR3-K01
Screw
|
90134-SR3-K01 |
— | ||
|
16
|
16
90141-SR3-K01
Bolt-washer
|
90141-SR3-K01 |
— | ||
|
17
|
17
90142-S04-K01
Bolt-washer
|
90142-S04-K01 |
— | ||
|
18
|
18
90430-PAA-A01
Washer
|
90430-PAA-A01 |
— | ||
|
19
|
19
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
