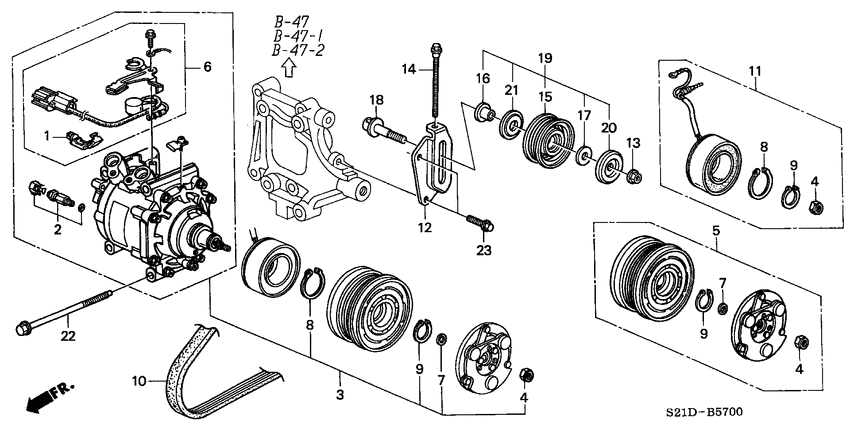

Air conditioner (SANDEN; COMPRESSOR; SOHC) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- Engine
- P6DD
- transmission
- 5MT
- Number of doors
- 4
- grade
- LXI
- power steering
- +
- area code
- PH
- left-hand drive
- +
- power window
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
5
|
5
38900-P2C-K01
Clutch set
|
38900-P2C-K01 |
— | ||
|
10
|
10
38920-P2C-K11 BeltCOMPRESSOR (THE GATES RUBBER) |
38920-P2C-K11 |
US $26.88 |
||
|
10
|
10
38920-P2C-K01 BeltCOMPRESSOR (BANDO) |
38920-P2C-K01 |
US $26.88 |
||
|
11
|
11
38924-P2C-K01
Coil set
|
38924-P2C-K01 |
— | ||
|
12
|
12
38926-P2C-M01
Stay
|
38926-P2C-M01 |
— | ||
|
13
|
13
38936-PM3-K21
Nut
|
38936-PM3-K21 |
— | ||
|
14
|
14
38937-PM3-K21
Bolt
|
38937-PM3-K21 |
— | ||
|
15
|
15
38942-P2C-K01 Pulley compIDLE |
38942-P2C-K01 |
US $39.68 |
||
|
16
|
16
38944-PM3-K21
Collar
|
38944-PM3-K21 |
— | ||
|
17
|
17
38945-P2C-K01
Cover
|
38945-P2C-K01 |
— | ||
|
18
|
18
38946-P00-K01
Bolt
|
38946-P00-K01 |
— | ||
|
22
|
22
90023-P00-K01
Bolt
|
90023-P00-K01 |
— |
