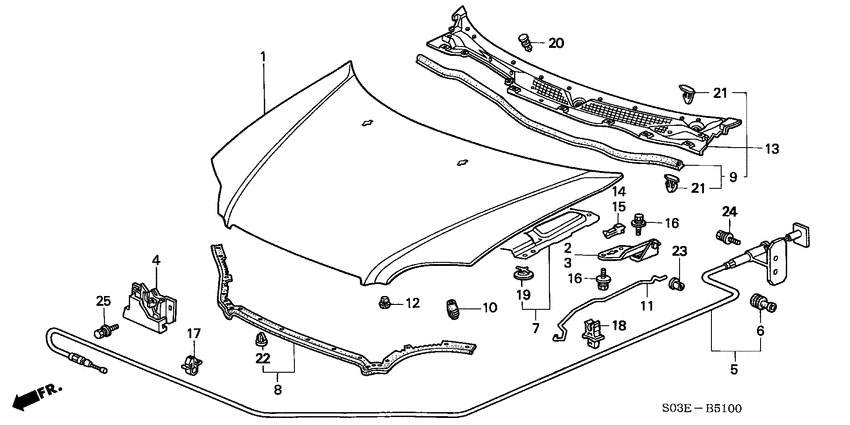

Hood (LH) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Z
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.5ILS
- abs
- +
- power steering
- +
- area code
- KG
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60100-S04-020ZZ
Hood comp.
|
60100-S04-020ZZ |
— | ||
|
2
|
2
60120-ST0-000ZZ Hinge compR. HOOD |
60120-ST0-000ZZ |
US $24.96 |
||
|
3
|
3
60170-ST0-000ZZ Hinge compL. HOOD |
60170-ST0-000ZZ |
US $24.96 |
||
|
4
|
4
74120-S04-A02
Lock assy
|
74120-S04-A02 |
— | ||
|
5
|
5
74130-S04-A01ZA
Wire assy.
|
74130-S04-A01ZA |
— | ||
|
6
|
6
74134-SH3-003 GrommetHOOD WIRE |
74134-SH3-003 |
US $2.25 |
||
|
8
|
8
74142-S04-G10 Rubber, HOOD SEAL |
74142-S04-G10 |
from US $71.40 |
||
|
9
|
9
74143-S04-000
Rubber
|
74143-S04-000 |
— | ||
|
10
|
10
74144-SR3-000 CushionHOOD |
74144-SR3-000 |
US $2.38 |
||
|
11
|
11
74145-S04-000
Stay
|
74145-S04-000 |
— | ||
|
12
|
12
74177-SD4-000 Cushion aHOOD |
74177-SD4-000 |
US $5.18 |
||
|
13
|
13
74200-S04-G00
Cowl top assy.
|
74200-S04-G00 |
— | ||
|
14
|
14
74214-S04-000
Cover
|
74214-S04-000 |
— | ||
|
15
|
15
74264-S04-000
Cover
|
74264-S04-000 |
— | ||
|
16
|
16
90127-SA0-000 Bolt-washer6X16 |
90127-SA0-000 |
US $0.59 |
||
|
17
|
17
90654-SA4-003 ClipWIRE HARNESS, 6MM (WHITE) |
90654-SA4-003 |
from US $0.34 |
||
|
18
|
18
90672-SJ4-013 HolderROD |
90672-SJ4-013 |
from US $2.36 |
||
|
20
|
20
91508-SR3-000
Clip
|
91508-SR3-000 |
— | ||
| replacement | |||||
|
20
|
20
91508-SX8-003 ClipCOWL TOP |
91508-SX8-003 |
from US $3.92 |
||
|
21
|
21
91515-SR3-000 ClipRR. HOOD |
91515-SR3-000 |
US $3.03 |
||
|
22
|
22
91518-SM4-003 ClipTRUNK MOLDING |
91518-SM4-003 |
from US $1.76 |
||
|
23
|
23
91604-SD2-013 GrommetHOOD STAY |
91604-SD2-013 |
from US $1 |
||
|
24
|
24
93401-060-160-8 Bolt-washer6X16 |
93401-060-160-8 |
from US $0.58 |
||
|
25
|
25
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
