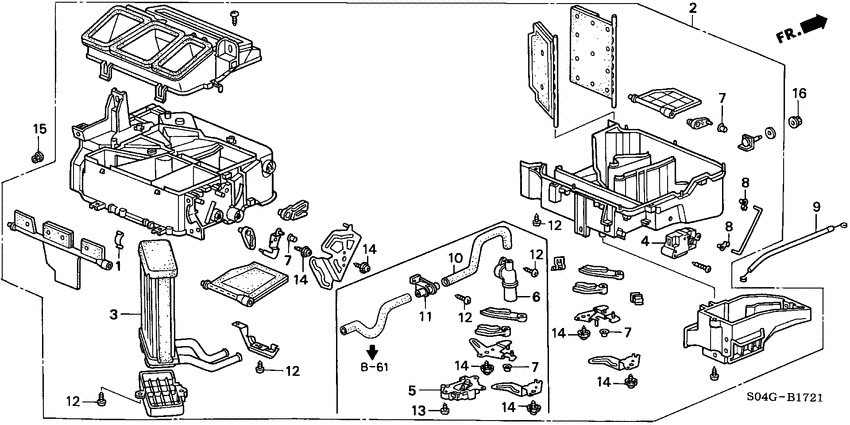

Heater unit (RH) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Z
- transmission
- 4AT
- Number of doors
- 4
- grade
- VTI
- abs
- +
- power steering
- +
- area code
- KU
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39246-671-003
Clamp
|
39246-671-003 |
— | ||
|
2
|
2
79100-S04-961
Heater unit
|
79100-S04-961 |
— | ||
|
3
|
3
79110-S04-J21 Core compHEATER |
79110-S04-J21 |
US $384 |
||
|
4
|
4
79140-S04-003
Motor assy.
|
79140-S04-003 |
— | ||
|
5
|
5
79160-SV4-941 Motor assy.AIR MIX |
79160-SV4-941 |
US $124.80 |
||
|
6
|
6
79170-SW5-003 Aspirator |
79170-SW5-003 |
US $16.90 |
||
|
7
|
7
79192-SR3-003 BushLINK |
79192-SR3-003 |
US $1.47 |
||
|
8
|
8
79195-SF1-003 HolderROD |
79195-SF1-003 |
US $1.82 |
||
|
9
|
9
79544-S04-000
Cable
|
79544-S04-000 |
— | ||
|
10
|
10
80532-S04-941 HoseASPIRATOR |
80532-S04-941 |
US $9.38 |
||
|
11
|
11
80534-SV4-941 JointASPIRATOR |
80534-SV4-941 |
US $3.57 |
||
|
12
|
12
90122-SR3-003 ScrewTAPPING, 5X12 |
90122-SR3-003 |
US $1.12 |
||
|
13
|
13
90125-SR3-003 ScrewTAPPING, 5X15 |
90125-SR3-003 |
US $1.47 |
||
|
14
|
14
90133-SR3-003 Screw-washer4X16 |
90133-SR3-003 |
from US $1.12 |
||
|
15
|
15
90321-SV4-003 Nut-washer6MM (PAINT CUTTING) |
90321-SV4-003 |
from US $1.47 |
||
|
16
|
16
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
