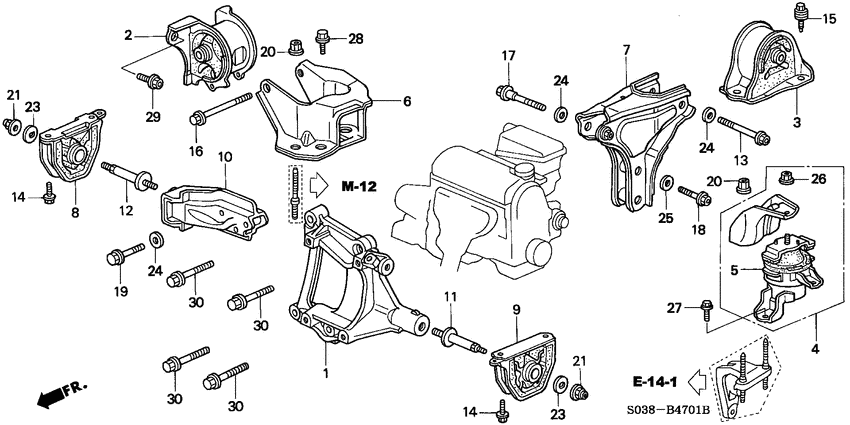

Engine mounts (2) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- VTI-R
- abs
- +
- power steering
- +
- area code
- KQ
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38930-P30-000 BracketCOMPRESSOR |
38930-P30-000 |
US $140.80 |
||
|
2
|
2
50805-S04-000 RubberTRANSMISSION MOUNTING |
50805-S04-000 |
from US $80.28 |
||
|
3
|
3
50810-ST7-000 InsulatorRR. ENGINE MOUNTING RUBBER (MT) |
50810-ST7-000 |
US $64.33 |
||
|
4
|
4
50820-S04-013
Rubber assy.
|
50820-S04-013 |
— | ||
|
5
|
5
50824-S04-013 Rubber assy.MOUNT |
50824-S04-013 |
US $157.76 |
||
|
6
|
6
50825-S04-000
Bracket
|
50825-S04-000 |
— | ||
|
7
|
7
50827-S04-N10 BracketENGINE RR. MOUNTING |
50827-S04-N10 |
US $58.11 |
||
|
8
|
8
50841-ST0-N10 RubberR. FR. STOPPER INSULATOR (MT) |
50841-ST0-N10 |
from US $49.90 |
||
|
9
|
9
50842-ST0-N10 RubberL. FR. STOPPER INSULATOR (MT) |
50842-ST0-N10 |
US $52.06 |
||
|
10
|
10
50843-S04-N10
Bracket
|
50843-S04-N10 |
— | ||
|
11
|
11
90131-ST7-000 BoltL. FR. STOPPER |
90131-ST7-000 |
US $12.88 |
||
|
12
|
12
90133-S04-000 BoltR. FR. STOPPER |
90133-S04-000 |
US $9.93 |
||
|
13
|
13
90165-SM4-020 BoltFLANGE, 12X101 |
90165-SM4-020 |
US $6.30 |
||
|
14
|
14
90166-SR3-000 BoltFLANGE, 10X30 |
90166-SR3-000 |
from US $1.54 |
||
|
15
|
15
90176-S04-000 Bolt-washer10X32.5 |
90176-S04-000 |
US $4.34 |
||
|
16
|
16
90183-SR3-000
Bolt
|
90183-SR3-000 |
— | ||
|
17
|
17
90186-SL4-000 BoltFLANGE, 12X67 |
90186-SL4-000 |
US $2.73 |
||
|
18
|
18
90188-SR3-010 BoltFLANGE, 14X67 |
90188-SR3-010 |
US $5.32 |
||
|
19
|
19
90190-SR3-000 BoltFLANGE, 12X64 |
90190-SR3-000 |
US $4.28 |
||
|
20
|
20
90371-SR3-000 NutFLANGE, 12MM |
90371-SR3-000 |
US $3.67 |
||
|
21
|
21
90372-SR3-003 NutFLANGE, 12MM |
90372-SR3-003 |
from US $2.18 |
||
|
23
|
23
90504-SR3-010 WasherFR. STOPPER |
90504-SR3-010 |
US $3.71 |
||
|
24
|
24
90505-SB2-000
Washer
|
90505-SB2-000 |
— | ||
|
25
|
25
90505-SR3-000
Washer
|
90505-SR3-000 |
— | ||
|
26
|
26
94050-12080 NutFLANGE, 12MM |
94050-12080 |
from US $0.81 |
||
|
27
|
27
95701-100-200-8 BoltFLANGE, 10X20 |
95701-100-200-8 |
from US $0.74 |
||
|
28
|
28
95701-120-200-8 BoltFLANGE, 12X20 |
95701-120-200-8 |
from US $0.98 |
||
|
29
|
29
95701-120-250-8 BoltFLANGE, 12X25 |
95701-120-250-8 |
from US $1.14 |
||
|
30
|
30
95801-100-450-8 BoltFLANGE, 10X45 |
95801-100-450-8 |
from US $0.89 |
