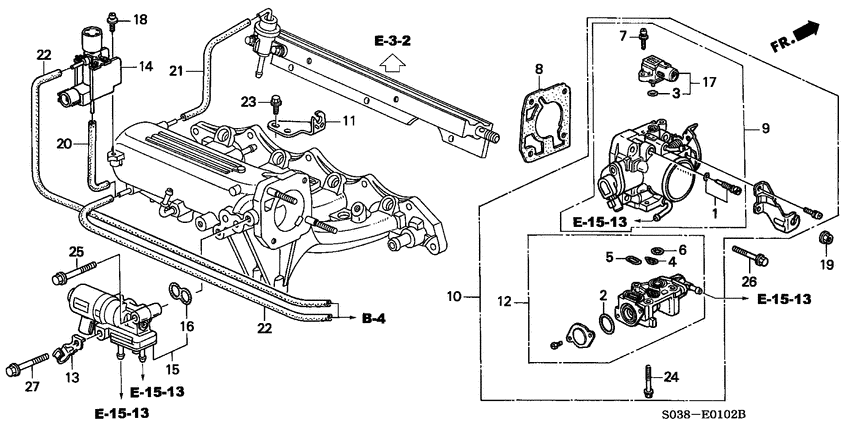

Throttle body (DOHC VTEC) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- SIR
- abs
- +
- power steering
- +
- area code
- KU
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16016-P2M-A01 Screw set |
16016-P2M-A01 |
US $6.58 |
||
|
3
|
3
16075-P07-000 O-ring |
16075-P07-000 |
from US $2.23 |
||
|
7
|
7
16080-P07-000 Screw-washer4X16 |
16080-P07-000 |
from US $2.37 |
||
|
8
|
8
16176-P2T-004 GasketTHROTTLE BODY (NIPPON LEAKLESS) |
16176-P2T-004 |
from US $5.08 |
||
|
9
|
9
16400-P2T-003
Throttle Body Assy
|
16400-P2T-003 |
— | ||
|
11
|
11
16411-P2T-000
Stay
|
16411-P2T-000 |
— | ||
|
13
|
13
36151-P05-A00
Stay
|
36151-P05-A00 |
— | ||
|
15
|
15
36450-P2J-J01
Valve assy.
|
36450-P2J-J01 |
— | ||
|
16
|
16
36455-PT3-A01 Packing, ELECTRONIC AIR CONTROL VALVE (DENSO) |
36455-PT3-A01 |
from US $3.42 |
||
|
17
|
17
37830-PAA-S00 Sensor setMAP |
37830-PAA-S00 |
US $376.72 |
||
|
19
|
19
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
21
|
21
95005-351-351-0
Tube
|
95005-351-351-0 |
— | ||
| replacement | |||||
|
21
|
21
95005-352-0010S
Tube 35x200
|
95005-352-0010S |
— | ||
|
22
|
22
95005-354-401-0 Tube3.5X440 (95005-35001-10M) |
95005-354-401-0 |
US $4.74 |
||
|
23
|
23
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
25
|
25
95701-080-450-8 BoltFLANGE, 8X45 |
95701-080-450-8 |
from US $0.81 |
||
|
26
|
26
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
|
27
|
27
95701-080-450-8 BoltFLANGE, 8X45 |
95701-080-450-8 |
from US $0.81 |
||
