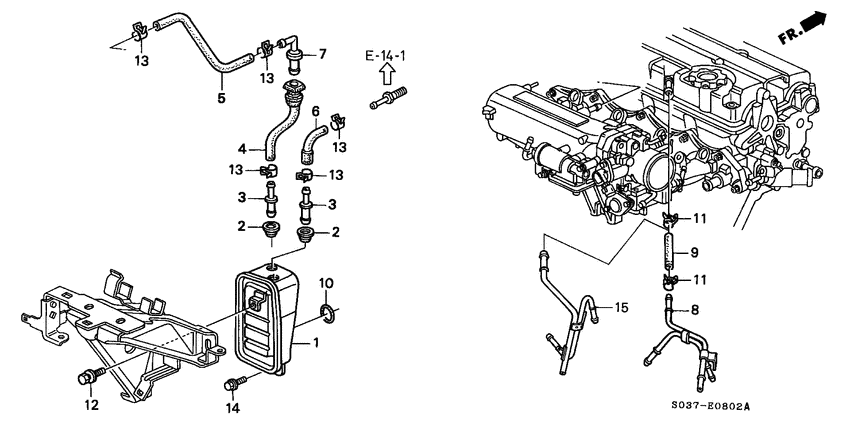

Breather chamber (DOHC VTEC) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.6VTI
- abs
- +
- power steering
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11850-PR3-000
Chamber comp
|
11850-PR3-000 |
— | ||
|
2
|
2
11853-PR3-000 Grommet, BREATHER CHAMBER |
11853-PR3-000 |
US $2.77 |
||
|
3
|
3
11854-PR3-000 Joint, BREATHER CHAMBER |
11854-PR3-000 |
US $2.96 |
||
|
4
|
4
11855-P30-000 Tube A, PCV |
11855-P30-000 |
from US $10.06 |
||
|
5
|
5
11856-P30-000 Tube B, PCV |
11856-P30-000 |
from US $11.39 |
||
|
6
|
6
11857-PR3-000 Tube C, PCV |
11857-PR3-000 |
US $8.63 |
||
|
7
|
7
17130-PR4-Y01
Valve assy.
|
17130-PR4-Y01 |
— | ||
|
9
|
9
17153-P2T-000
Tube
|
17153-P2T-000 |
— | ||
|
10
|
10
91324-PR3-003 O-ring, 29X2.5 |
91324-PR3-003 |
from US $2.63 |
||
|
11
|
11
95002-413-000-4 ClampTUBE(D13) |
95002-413-000-4 |
from US $1.04 |
||
|
12
|
12
93406-080-160-8 Bolt-washer8X16 |
93406-080-160-8 |
from US $0.67 |
||
|
13
|
13
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
||
|
14
|
14
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
15
|
15
17135-P2T-A00
Pipe comp
|
17135-P2T-A00 |
— |
