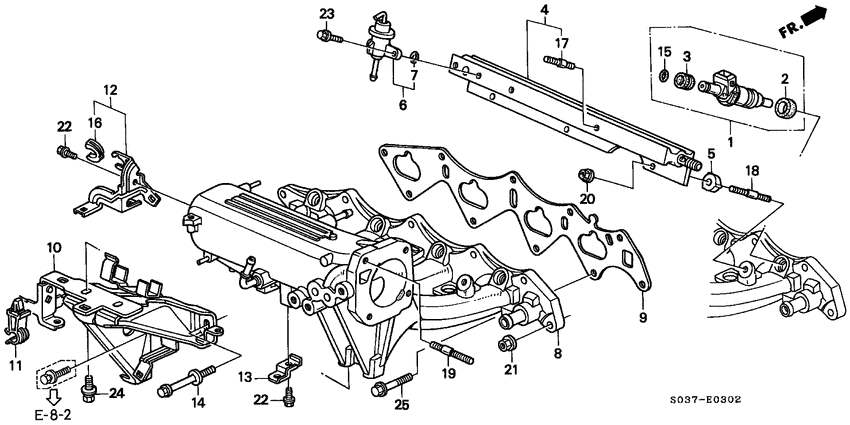

Intake manifold (DOHC VTEC) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.6VTI
- abs
- +
- power steering
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06164-P2J-000 INJECTOR (1pc), packing set1pc |
06164-P2J-000 |
US $201.28 |
||
|
2
|
2
16472-PH7-003 Seal ringINJECTOR (OTSUKA) |
16472-PH7-003 |
from US $4.84 |
||
| replacement | |||||
|
2
|
2
16472-P0H-A01 Seal ringINJECTOR (NOK) |
16472-P0H-A01 |
US $25.28 |
||
|
3
|
3
16473-PD6-000 Cushion ringINJECTOR (OTSUKA) |
16473-PD6-000 |
from US $5.33 |
||
| replacement | |||||
|
3
|
3
16473-P10-A01 Cushion ringINJECTOR (NOK) |
16473-P10-A01 |
US $10.10 |
||
|
4
|
4
16620-P2T-000 Pipe assy.FUEL |
16620-P2T-000 |
US $162.56 |
||
|
5
|
5
16638-PH3-S00 InsulatorFUEL PIPE |
16638-PH3-S00 |
from US $2.73 |
||
|
6
|
6
16740-P05-A01
Regulator assy
|
16740-P05-A01 |
— | ||
|
7
|
7
16741-PG7-005 O-ringPRESSURE REGULATOR |
16741-PG7-005 |
from US $2.22 |
||
|
8
|
8
17100-P2T-J00
Manifold comp
|
17100-P2T-J00 |
— | ||
|
9
|
9
17105-P30-004 GasketINTAKE MANIFOLD (NIPPON LEAKLESS) |
17105-P30-004 |
US $15.41 |
||
|
10
|
10
17132-P2T-000
Stay comp
|
17132-P2T-000 |
— | ||
|
11
|
11
19509-PR3-003
Clamp
|
19509-PR3-003 |
— | ||
|
12
|
12
32741-P2T-000
Stay a
|
32741-P2T-000 |
— | ||
|
13
|
13
32748-PR3-000 Stay cENGINE WIRE HARNESS |
32748-PR3-000 |
US $11.87 |
||
|
14
|
14
90033-P2T-005
Bolt
|
90033-P2T-005 |
— | ||
|
15
|
15
91301-PM7-003 O-ring7.3X2.2 (ARAI) |
91301-PM7-003 |
US $4.39 |
||
| replacements | |||||
|
15
|
15
91301-P2F-A01 O-ring7.3X2.2 (NOK) |
91301-P2F-A01 |
US $5.39 |
||
|
15
|
15
16074-ZY3-000 O-ring |
16074-ZY3-000 |
from US $4.14 |
||
|
16
|
16
91593-ST7-931 ClipFUEL HOSE |
91593-ST7-931 |
US $2.31 |
||
|
17
|
17
92900-06018-1B BoltSTUD, 6X18 |
92900-06018-1B |
from US $0.59 |
||
|
18
|
18
92900-06028-08 BoltSTUD, 6X28 |
92900-06028-08 |
from US $0.59 |
||
| replacement | |||||
|
18
|
18
92900-06028-0B BoltSTUD, 6X28 |
92900-06028-0B |
from US $0.59 |
||
|
19
|
19
92900-08035-1B BoltSTUD, 8X35 |
92900-08035-1B |
US $0.81 |
||
|
20
|
20
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
21
|
21
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
22
|
22
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
23
|
23
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
24
|
24
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
|
25
|
25
95701-080-280-8 BoltFLANGE, 8X28 |
95701-080-280-8 |
from US $0.74 |
||
