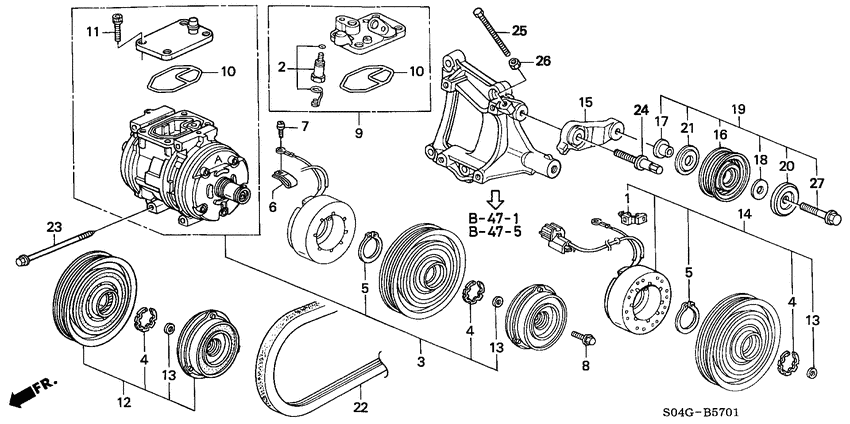

Air conditioner (COMPRESSOR; DENSO) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- SIR
- abs
- +
- power steering
- +
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38773-PR3-003 ClipWIRE HARNESS |
38773-PR3-003 |
US $2.03 |
||
|
2
|
2
38801-P9K-E01
Valve sub assy.
|
38801-P9K-E01 |
— | ||
|
3
|
3
38810-P9K-E01 Compressor comp.DENSO |
38810-P9K-E01 |
US $591.36 |
||
|
4
|
4
38812-PH1-003 Ring bSNAP |
38812-PH1-003 |
US $4.06 |
||
|
5
|
5
38812-671-003 Ring aSNAP |
38812-671-003 |
from US $3.29 |
||
|
6
|
6
38816-PR3-003 ClipLEAD WIRE |
38816-PR3-003 |
US $1.82 |
||
|
7
|
7
38827-PH7-003 Screw-washer5X8 |
38827-PH7-003 |
US $1.26 |
||
|
8
|
8
38829-PR3-003 BoltWASHER HEAD |
38829-PR3-003 |
US $1.61 |
||
|
9
|
9
38838-P9K-E01
Valve
|
38838-P9K-E01 |
— | ||
|
10
|
10
38839-PR7-A01 O-ring |
38839-PR7-A01 |
US $7 |
||
|
11
|
11
38840-PC1-003 Bolt b |
38840-PC1-003 |
US $3.50 |
||
|
12
|
12
38900-P2T-003 Clutch setCOMPRESSOR |
38900-P2T-003 |
US $172.80 |
||
|
13
|
13
38912-PH1-N01 Plate setWASHER |
38912-PH1-N01 |
US $4.72 |
||
|
14
|
14
38924-P2T-003
Stator set
|
38924-P2T-003 |
— | ||
|
15
|
15
38941-P30-000
Bracket
|
38941-P30-000 |
— | ||
|
16
|
16
38942-P2K-T01 Pulley compIDLE |
38942-P2K-T01 |
US $36.10 |
||
|
17
|
17
38944-P3F-000 CollarIDLE PULLEY |
38944-P3F-000 |
US $4.34 |
||
|
18
|
18
38945-P3R-T01
Washer
|
38945-P3R-T01 |
— | ||
|
19
|
19
38950-P3F-305 Pulley assy |
38950-P3F-305 |
US $56.58 |
||
|
20
|
20
38951-P3R-T00 CoverBEARING OUTER |
38951-P3R-T00 |
US $2.80 |
||
|
21
|
21
38952-P3R-T00 CoverBEARING INNER |
38952-P3R-T00 |
US $1.96 |
||
|
22
|
22
56992-P2A-004 BeltPOWER STEERING PUMP (MITSUBOSHI) |
56992-P2A-004 |
US $26.88 |
||
|
22
|
22
56992-P2A-003 BeltPOWER STEERING PUMP (BANDO) |
56992-P2A-003 |
US $29.92 |
||
| replacement | |||||
|
22
|
22
38920P3F507 BELTCOMPRESSOR |
38920P3F507 |
US $29.92 |
||
|
23
|
23
90023-P30-000 BoltFLANGE, 8X90 |
90023-P30-000 |
US $3.34 |
||
|
24
|
24
90054-P30-000 BoltSPECIAL, 10X30 |
90054-P30-000 |
US $3.22 |
||
|
25
|
25
90087-P30-003
Bolt
|
90087-P30-003 |
— | ||
|
26
|
26
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
26
|
26
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
27
|
27
95701-100-320-8 BoltFLANGE, 10X32 |
95701-100-320-8 |
from US $0.90 |
||
