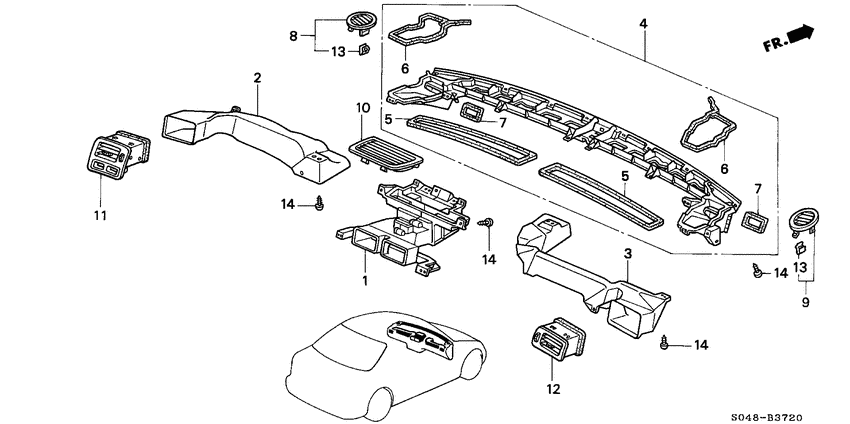

Duct (LH) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- SIR
- abs
- +
- power steering
- +
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77411-S04-G01
Duct
|
77411-S04-G01 |
— | ||
|
2
|
2
77430-S04-G00
Duct
|
77430-S04-G00 |
— | ||
|
3
|
3
77440-S04-G00
Duct assy
|
77440-S04-G00 |
— | ||
|
4
|
4
77462-S04-000 GarnishFR. DEFROSTER |
77462-S04-000 |
US $40.32 |
||
|
5
|
5
77464-S04-000 SealFR. DEFROSTER OUTER |
77464-S04-000 |
US $9.24 |
||
|
6
|
6
77465-S04-000 SealFR. DEFROSTER |
77465-S04-000 |
US $2.94 |
||
|
7
|
7
77467-S04-000 SealDEFROSTER PLUG SIDE LOWER |
77467-S04-000 |
US $2.45 |
||
|
8
|
8
77470-S04-G00ZC GarnishDRIVER SIDE DEFROSTER *NH167L* |
77470-S04-G00ZC |
US $7.28 |
||
|
9
|
9
77475-S04-G00ZA
Garnish assy
|
77475-S04-G00ZA |
— | ||
|
10
|
10
77620-S04-G01ZB
Garnish assy
|
77620-S04-G01ZB |
— | ||
|
11
|
11
77635-S04-P01ZD
Outlet assy
|
77635-S04-P01ZD |
— | ||
|
12
|
12
77645-S04-Y01ZD
Outlet assy
|
77645-S04-Y01ZD |
— | ||
|
13
|
13
90666-SD4-003 ClipFITTING |
90666-SD4-003 |
from US $1.92 |
||
|
14
|
14
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
