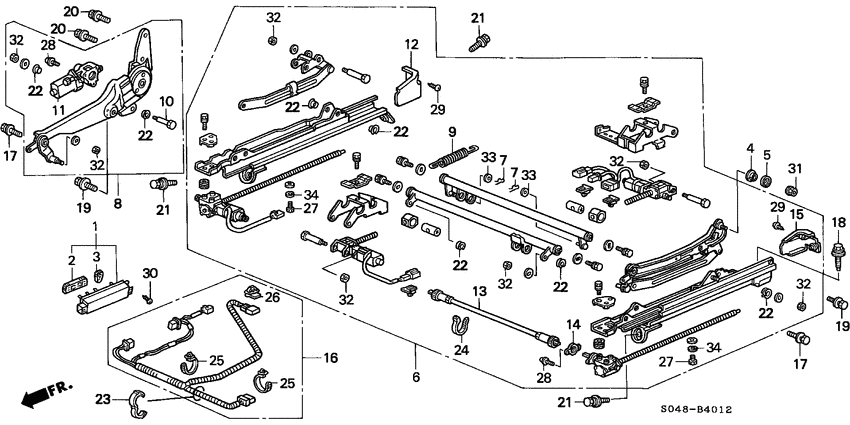

Front seat components (R.; POWER SEAT) Diagram Honda CIVIC
- Year
- 1997
- Model code
- CIVIC
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- SIR
- abs
- +
- power steering
- +
- area code
- KU
- right-hand drive
- +
- sunroof
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35950-SM4-J61ZC
Switch assy
|
35950-SM4-J61ZC |
— | ||
|
2
|
2
35951-SM4-J62ZC KnobSLIDE *NH167L* |
35951-SM4-J62ZC |
US $8.26 |
||
|
3
|
3
35952-SM4-J61ZC KnobRECLINING *NH167L* |
35952-SM4-J61ZC |
US $4.20 |
||
|
4
|
4
81117-S47-003 BushNYLON(TS TECH) |
81117-S47-003 |
US $1.61 |
||
|
5
|
5
77209-SB0-003
Washer
|
77209-SB0-003 |
— | ||
|
6
|
6
81210-S04-305
Slide & height comp.
|
81210-S04-305 |
— | ||
|
7
|
7
81212-S04-305
Pin
|
81212-S04-305 |
— | ||
|
8
|
8
81220-S04-305
Adjuster comp
|
81220-S04-305 |
— | ||
|
9
|
9
81227-SR3-J11
Spring
|
81227-SR3-J11 |
— | ||
|
10
|
10
81229-SR3-J11
Bolt b
|
81229-SR3-J11 |
— | ||
|
11
|
11
81234-SR3-J11
Motor assy.
|
81234-SR3-J11 |
— | ||
|
12
|
12
81265-SR3-J11
Cover
|
81265-SR3-J11 |
— | ||
|
13
|
13
81266-SR3-J11
Cable comp
|
81266-SR3-J11 |
— | ||
|
14
|
14
81267-SR3-J11
Cap
|
81267-SR3-J11 |
— | ||
|
15
|
15
81275-SR3-J11
Cover
|
81275-SR3-J11 |
— | ||
|
16
|
16
81311-ST8-J30
Cord
|
81311-ST8-J30 |
— | ||
|
17
|
17
90124-SD4-J00
Bolt-washer
|
90124-SD4-J00 |
— | ||
|
18
|
18
90135-SK7-A01 Bolt-washer10X27 |
90135-SK7-A01 |
US $3.77 |
||
|
19
|
19
90143-SR3-000 Bolt-washer10X22 |
90143-SR3-000 |
US $2.38 |
||
|
20
|
20
90143-SR3-900 Bolt-washer10X22 |
90143-SR3-900 |
US $2.73 |
||
|
21
|
21
90155-SH3-000 Bolt-washer8X25 |
90155-SH3-000 |
US $4.59 |
||
|
22
|
22
90522-SR3-003
Bush a
|
90522-SR3-003 |
— | ||
|
23
|
23
91558-SR3-003
Band
|
91558-SR3-003 |
— | ||
|
24
|
24
91559-SR3-003
Band
|
91559-SR3-003 |
— | ||
|
25
|
25
91567-SE0-003 BandWIRE HARNESS(WHITE) (93.5MM) |
91567-SE0-003 |
from US $3.08 |
||
|
26
|
26
91580-SM4-003 ClipCOUPLER(ORANGE) |
91580-SM4-003 |
from US $1.68 |
||
|
27
|
27
92101-08010-0A BoltHEX., 8X10 |
92101-08010-0A |
from US $0.52 |
||
|
28
|
28
93892-040-161-8 Screw-washer4X16 |
93892-040-161-8 |
from US $0.44 |
||
| replacement | |||||
|
28
|
28
93892-040-160-8 Screw-washer4X16 |
93892-040-160-8 |
from US $0.44 |
||
|
29
|
29
93901-24080 ScrewTAPPING, 4X6 |
93901-24080 |
from US $0.37 |
||
|
30
|
30
93903-14220 ScrewTAPPING, 4X10 |
93903-14220 |
US $0.37 |
||
|
31
|
31
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
32
|
32
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
|
33
|
33
94102-10800 WasherPLAIN, 10MM |
94102-10800 |
from US $0.44 |
||
|
34
|
34
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
