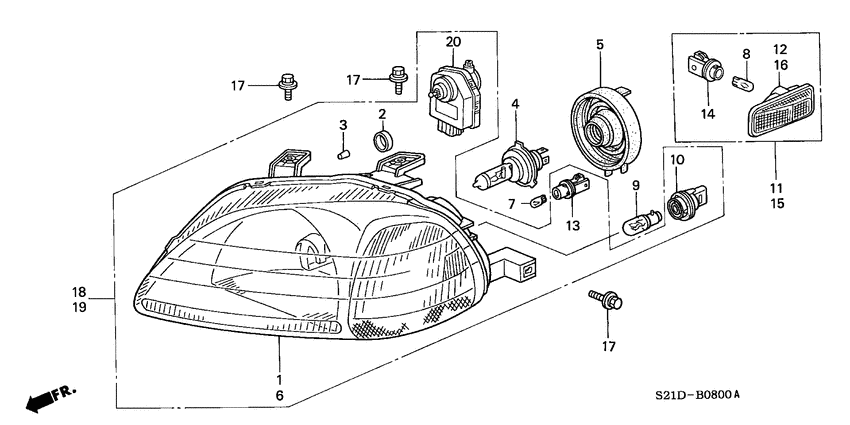

Headlight Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- Engine
- D14A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 1.4IS
- abs
- +
- power steering
- +
- area code
- TR
- left-hand drive
- +
- power window
- +
- air conditioner (dealer set)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33101-S04-B04
Headlight unit
|
33101-S04-B04 |
— | ||
|
2
|
2
33102-S04-G02
Cap
|
33102-S04-G02 |
— | ||
|
3
|
3
33104-S04-G01
Filter
|
33104-S04-G01 |
— | ||
|
4
|
4
33115-S04-G11 BulbHEADLIGHT(H4) (12V 60/55W)(VALEO) |
33115-S04-G11 |
US $25.60 |
||
|
5
|
5
33103-S04-G03
Cover
|
33103-S04-G03 |
— | ||
|
6
|
6
33151-S04-B04
Headlight unit
|
33151-S04-B04 |
— | ||
|
7
|
7
33302-S04-G02 Bulb12V 5W) (ECE) (VALEO |
33302-S04-G02 |
US $2.80 |
||
|
8
|
8
33301-SA0-741 Bulb (12V 5W)(12V 5W) (STANLEY) |
33301-SA0-741 |
from US $2.37 |
||
|
9
|
9
33301-S04-G02 Bulb12V 21W)(VALEO)(AMBER |
33301-S04-G02 |
US $5.60 |
||
|
10
|
10
33303-S04-G02
Socket comp.
|
33303-S04-G02 |
— | ||
|
11
|
11
34300-SL4-003
Light assy
|
34300-SL4-003 |
— | ||
|
12
|
12
34301-SL4-003 Lamp unitR. SIDE TURN |
34301-SL4-003 |
US $18.22 |
||
|
13
|
13
33304-S04-G02
Socket comp.
|
33304-S04-G02 |
— | ||
|
14
|
14
34304-SH3-A01
Socket comp.
|
34304-SH3-A01 |
— | ||
|
15
|
15
34350-SL4-003
Light assy
|
34350-SL4-003 |
— | ||
|
16
|
16
34351-SL4-003 Lamp unitL. SIDE TURN |
34351-SL4-003 |
US $16.73 |
||
|
17
|
17
90146-SA7-000
Bolt-washer
|
90146-SA7-000 |
— | ||
| replacement | |||||
|
17
|
17
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
