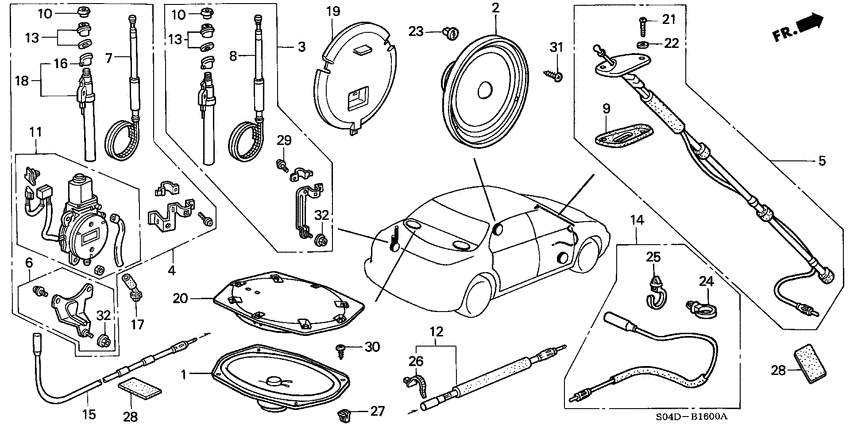

Radio antenna/speaker Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- D14A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 1.4IS
- area code
- TR
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39120-SV4-A61
Speaker unit
|
39120-SV4-A61 |
— | ||
|
2
|
2
39120-S84-A02
Speaker assy
|
39120-S84-A02 |
— | ||
|
5
|
5
39150-S04-G01 Antenna assyAUTO RADIO |
39150-S04-G01 |
US $65.96 |
||
|
9
|
9
39154-SR3-G01
Packing
|
39154-SR3-G01 |
— | ||
|
14
|
14
39156-S04-000 FeederANTENNA |
39156-S04-000 |
US $38.91 |
||
|
21
|
21
90105-SB6-003 ScrewPAN, 4X12 |
90105-SB6-003 |
US $3.18 |
||
|
22
|
22
90502-SA0-003
Washer
|
90502-SA0-003 |
— | ||
|
24
|
24
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
25
|
25
91551-SW5-003 ClipHARNESS BAND (BROWN) (151MM) |
91551-SW5-003 |
from US $1.61 |
||
|
27
|
27
91647-S04-003 GrommetSCREW, 4MM |
91647-S04-003 |
US $1.75 |
||
|
30
|
30
93903-14380 ScrewTAPPING, 4X12 |
93903-14380 |
from US $0.41 |
||
|
31
|
31
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
