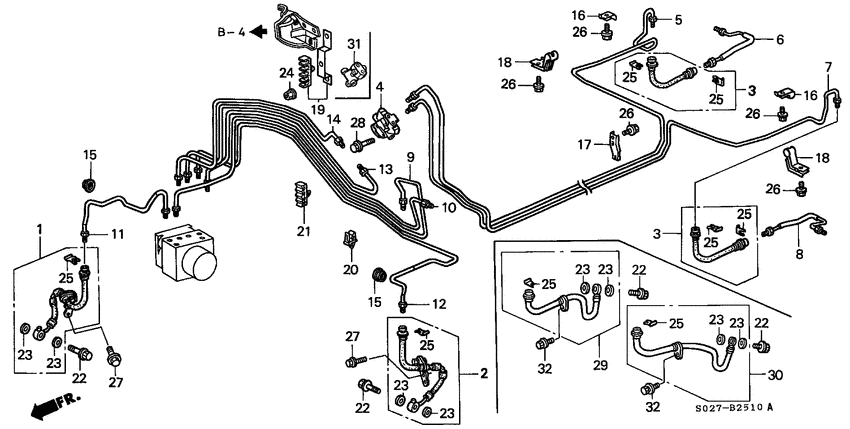

Brake lines (ABS; LH) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 1.6VTI VTEC
- abs
- +
- area code
- KG
- left-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01464-S04-V02
Hose set
|
01464-S04-V02 |
— | ||
|
2
|
2
01465-S04-V02
Hose set
|
01465-S04-V02 |
— | ||
|
5
|
5
46330-S04-000
Pipe comp. c
|
46330-S04-000 |
— | ||
|
7
|
7
46340-S04-000
Pipe comp. d
|
46340-S04-000 |
— | ||
|
9
|
9
46374-S04-A01
Pipe comp. u
|
46374-S04-A01 |
— | ||
|
10
|
10
46375-S04-A10
Pipe comp. v
|
46375-S04-A10 |
— | ||
|
11
|
11
46376-S04-A00
Pipe comp. w
|
46376-S04-A00 |
— | ||
|
12
|
12
46377-S04-A01
Pipe comp. x
|
46377-S04-A01 |
— | ||
|
13
|
13
46378-S04-A00
Pipe comp. y
|
46378-S04-A00 |
— | ||
|
14
|
14
46379-S04-A00
Pipe comp. z
|
46379-S04-A00 |
— | ||
|
15
|
15
46380-SH3-000 Grommet aBRAKE PIPE |
46380-SH3-000 |
US $2.52 |
||
|
16
|
16
46391-SR3-J00 ClampBRAKE PIPE |
46391-SR3-J00 |
US $7.10 |
||
|
17
|
17
46391-SR3-J10 ClampBRAKE PIPE |
46391-SR3-J10 |
US $6.72 |
||
|
18
|
18
46392-SR3-000 ClipBRAKE PIPE |
46392-SR3-000 |
US $8.73 |
||
|
19
|
19
46392-S04-000
Clip
|
46392-S04-000 |
— | ||
|
20
|
20
46394-S04-003 Clip A |
46394-S04-003 |
from US $1.80 |
||
|
21
|
21
46394-S04-901 Clip b |
46394-S04-901 |
US $3.77 |
||
|
22
|
22
46462-SE0-000 BoltOIL |
46462-SE0-000 |
from US $3.33 |
||
|
23
|
23
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
24
|
24
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
25
|
25
90651-SV1-A01 ClipBRAKE HOSE |
90651-SV1-A01 |
US $3.34 |
||
|
26
|
26
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
27
|
27
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
28
|
28
95801-060-450-8 BoltFLANGE, 6X45 |
95801-060-450-8 |
from US $0.74 |
||
|
29
|
29
01466-S04-900
Hose set
|
01466-S04-900 |
— | ||
|
30
|
30
01468-S04-900
Hose set
|
01468-S04-900 |
— | ||
|
31
|
31
46470-S10-E01 JointFOUR WAY |
46470-S10-E01 |
US $29.31 |
||
|
32
|
32
93402-080-200-8 Bolt-washer8X20 |
93402-080-200-8 |
from US $0.74 |
