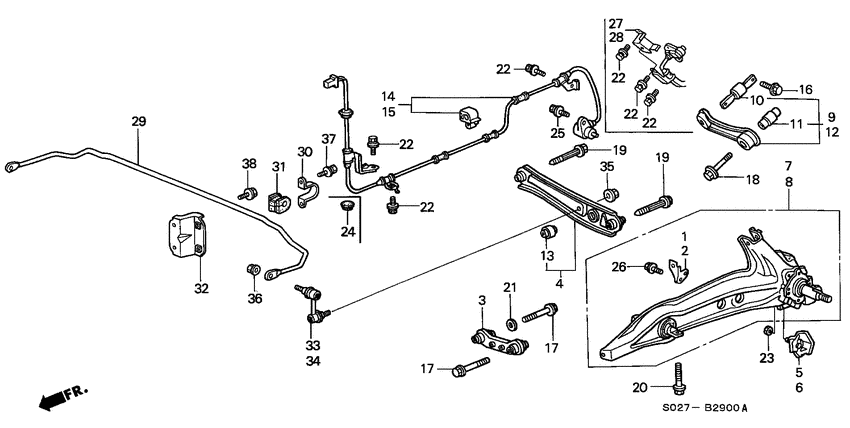

Rear lower arm Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- B16A
- transmission
- 5MT
- Number of doors
- 2
- grade
- 1.6VTI VTEC
- abs
- +
- area code
- KG
- left-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46438-SR3-010
Bracket
|
46438-SR3-010 |
— | ||
|
2
|
2
46439-SR3-010
Bracket
|
46439-SR3-010 |
— | ||
|
3
|
3
52341-S04-000
Arm comp
|
52341-S04-000 |
— | ||
| replacement | |||||
|
3
|
3
52341-S04-A00 Compensator arm c |
52341-S04-A00 |
from US $85 |
||
|
4
|
4
52350-S04-000 Arm compRR. LOWER |
52350-S04-000 |
US $123.08 |
||
|
5
|
5
52354-SR3-000
Protector
|
52354-SR3-000 |
— | ||
|
6
|
6
52364-SR3-000
Protector
|
52364-SR3-000 |
— | ||
|
7
|
7
52370-S04-A21
Arm comp
|
52370-S04-A21 |
— | ||
|
8
|
8
52371-S04-A21
Arm comp
|
52371-S04-A21 |
— | ||
|
9
|
9
52390-SR0-A00
Arm comp
|
52390-SR0-A00 |
— | ||
|
10
|
10
52393-SR0-004 BushUPPER ARM INNER (YUSA) |
52393-SR0-004 |
US $31.23 |
||
|
11
|
11
52395-SR0-A01 BushRR. UPPER ARM (YUSA) |
52395-SR0-A01 |
US $17.15 |
||
|
12
|
12
52400-SR0-A00 Arm compL. RR. UPPER |
52400-SR0-A00 |
US $65.28 |
||
|
13
|
13
52622-SH3-013 BushRR. SHOCK ABSORBER LOWER (HOKUSHIN) |
52622-SH3-013 |
US $16 |
||
|
14
|
14
57470-S04-961
Sensor assy
|
57470-S04-961 |
— | ||
|
15
|
15
57475-S04-961
Sensor assy
|
57475-S04-961 |
— | ||
|
16
|
16
90117-SH3-004 BoltUPPER ARM, 10X30 |
90117-SH3-004 |
from US $3.78 |
||
|
17
|
17
90171-SR3-003 BoltTORQUE COMPENSATOR, 10X59 |
90171-SR3-003 |
US $5.62 |
||
|
18
|
18
90172-SK7-003 BoltUPPER ARM, 10X68 |
90172-SK7-003 |
US $3.48 |
||
|
19
|
19
90173-SR3-003 BoltLOWER ARM, 10X80 |
90173-SR3-003 |
from US $5.96 |
||
|
20
|
20
90174-SJ4-003 BoltTRAILING ARM BUSH, 12X60 |
90174-SJ4-003 |
from US $8.73 |
||
|
21
|
21
90551-SH3-000
Washer
|
90551-SH3-000 |
— | ||
|
22
|
22
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
23
|
23
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
25
|
25
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
26
|
26
95801-080-160-8
Bolt
|
95801-080-160-8 |
— | ||
| replacement | |||||
|
26
|
26
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
27
|
27
42534-S04-000
Cover
|
42534-S04-000 |
— | ||
|
28
|
28
42535-S04-000
Cover
|
42535-S04-000 |
— | ||
|
29
|
29
52300-S04-N01
Spring
|
52300-S04-N01 |
— | ||
|
30
|
30
52308-S04-000
Holder
|
52308-S04-000 |
— | ||
|
31
|
31
52315-S04-N00 BushRR. STABILIZER |
52315-S04-N00 |
US $3.57 |
||
|
32
|
32
52317-S04-000
Bracket
|
52317-S04-000 |
— | ||
|
33
|
33
52320-S04-003 Link assyR. RR. STABILIZER |
52320-S04-003 |
US $134.64 |
||
|
34
|
34
52321-S04-003 Link assyL. RR. STABILIZER |
52321-S04-003 |
US $134.64 |
||
|
35
|
35
90002-S10-000 NutFLANGE, 10MM |
90002-S10-000 |
from US $2.29 |
||
|
36
|
36
90306-SB2-013 NutSELF-LOCK, 10MM (CLINCH) |
90306-SB2-013 |
US $3.02 |
||
|
37
|
37
93403-080-200-8 Bolt-washer8X20 |
93403-080-200-8 |
from US $0.74 |
||
|
38
|
38
95701-080-180-8 Bolt, FLANGE, 8X18 |
95701-080-180-8 |
from US $0.59 |
||
